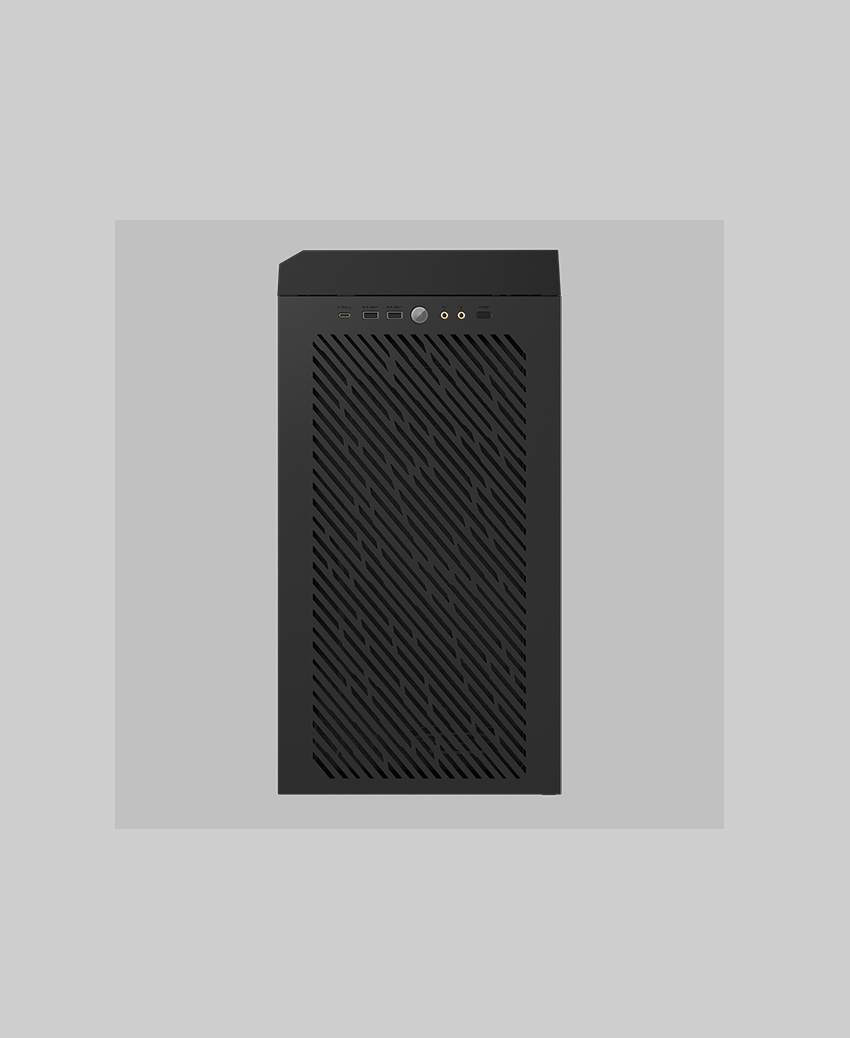

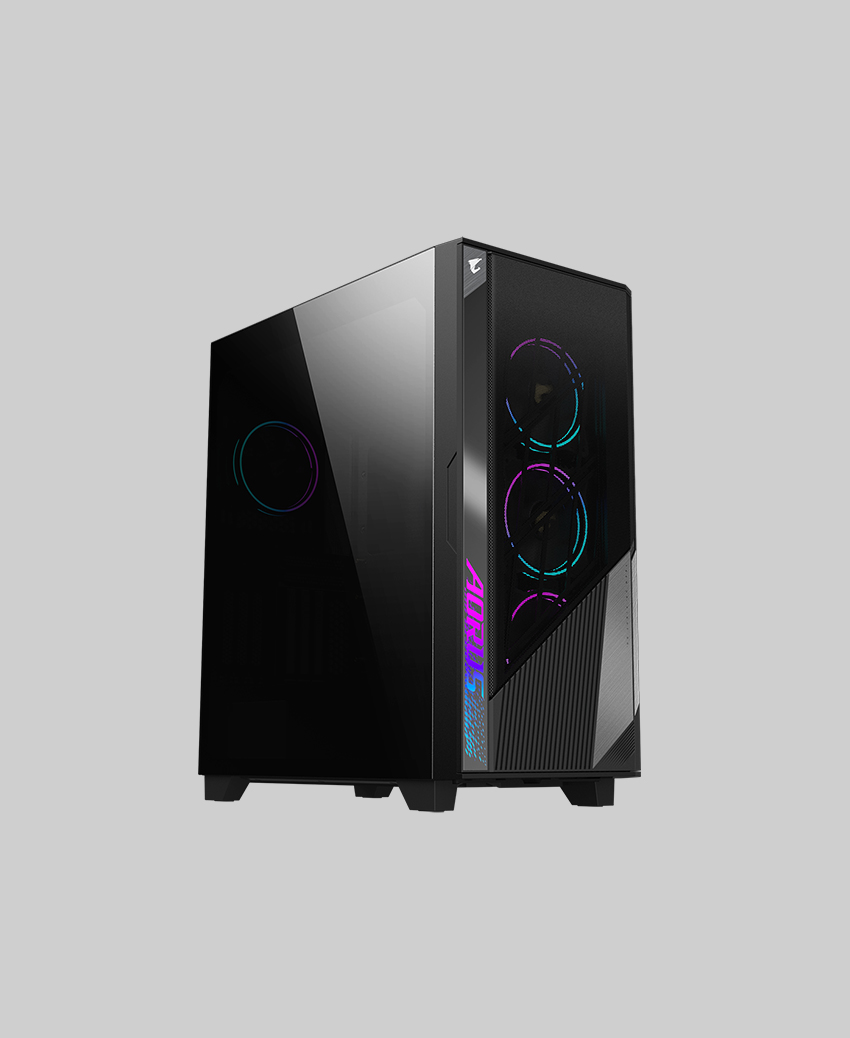

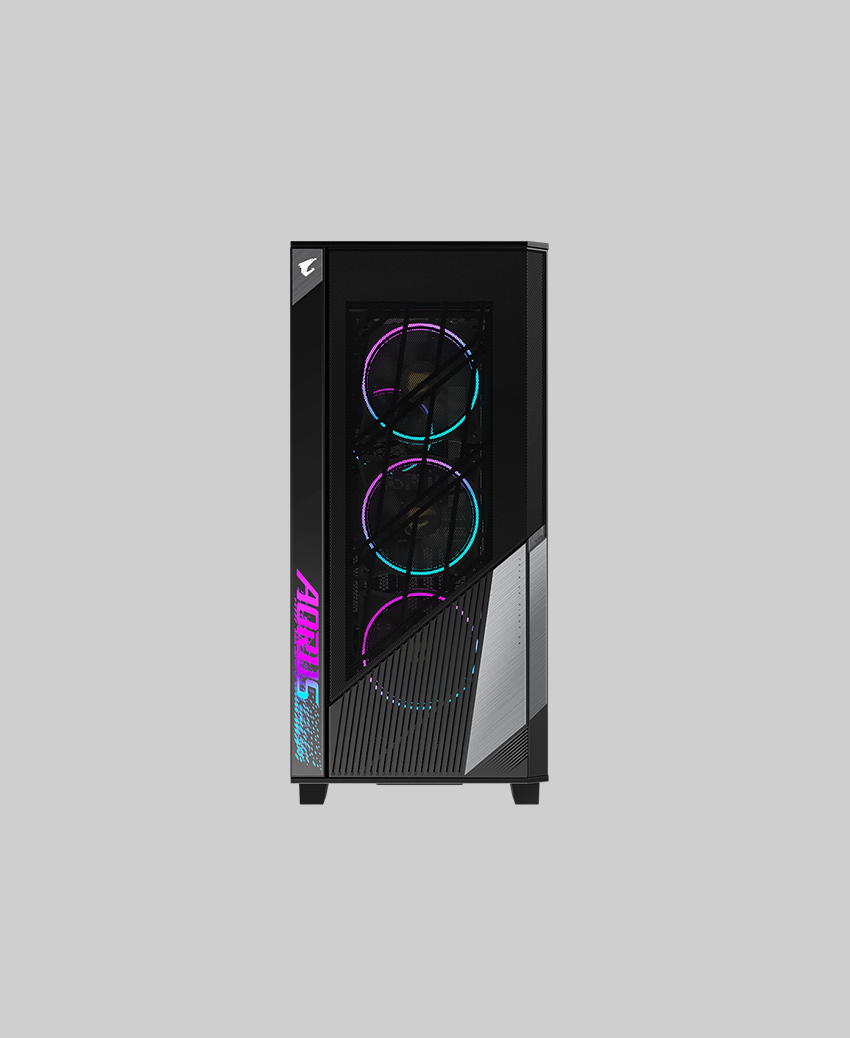

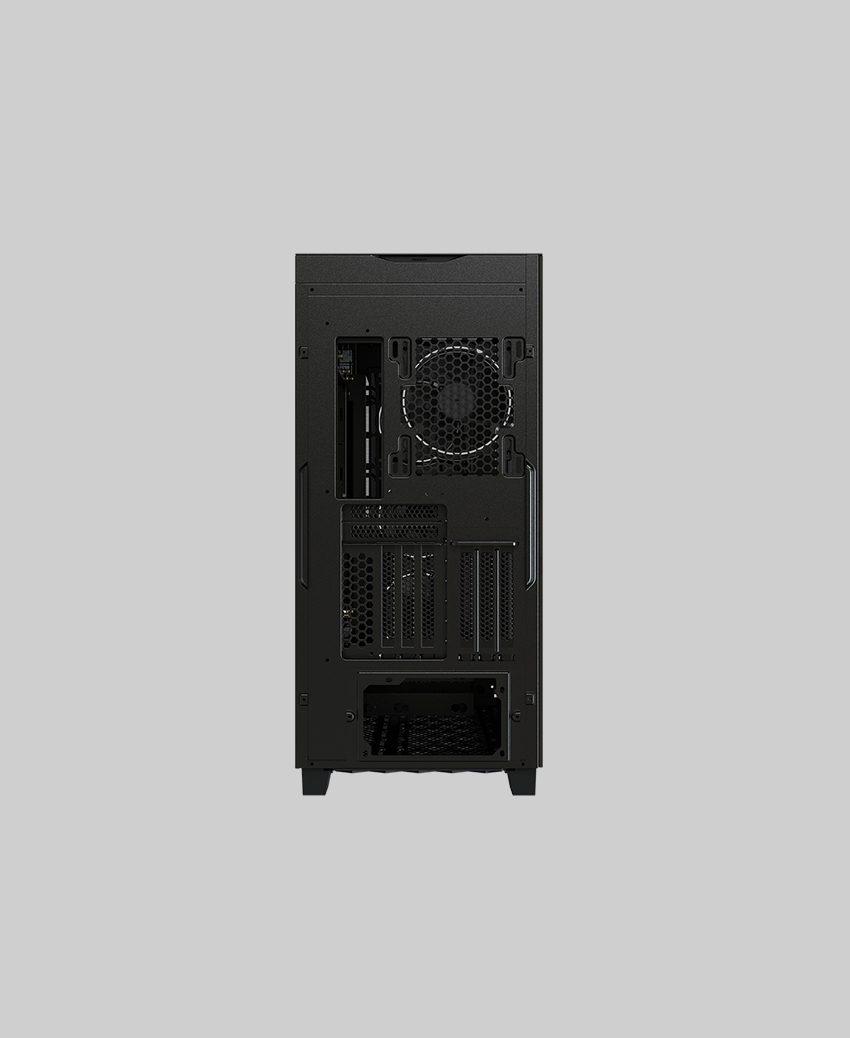

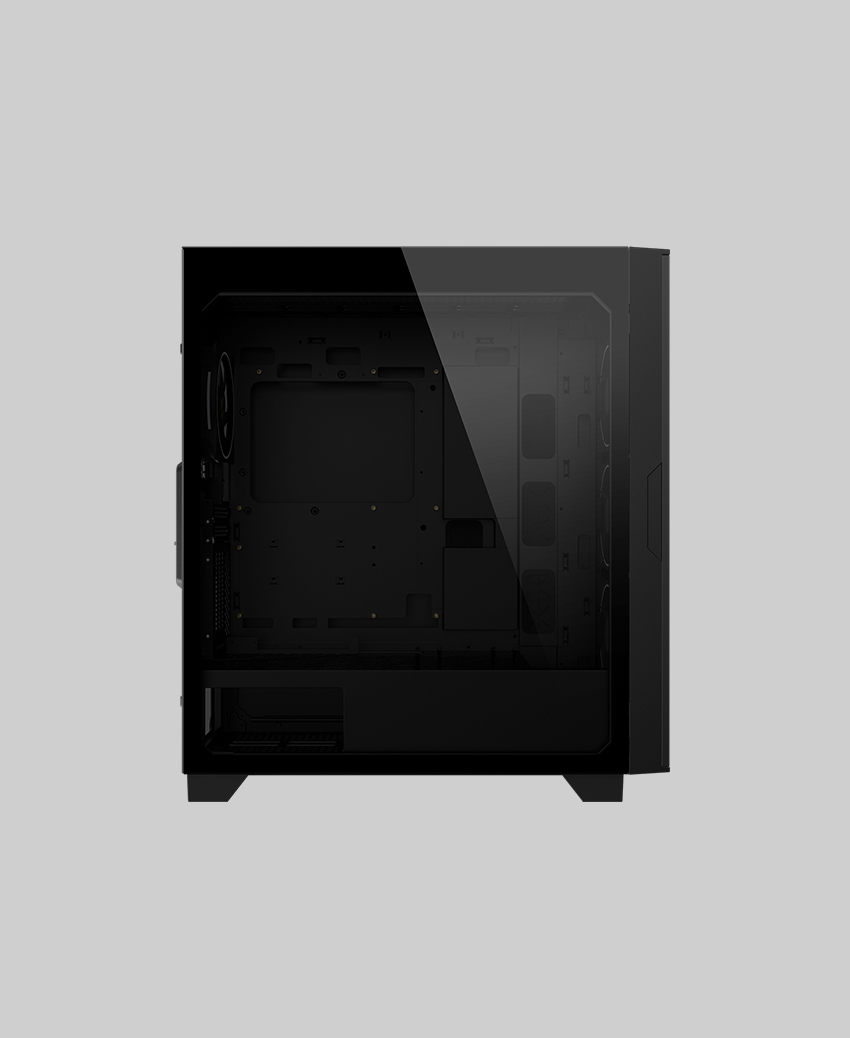

AORUS C500 GLASS – Technical Specifications
Main Specs
| Case Form Factor | Mid Tower |
| Motherboard Support | E-ATX, ATX, Micro ATX, Mini ITX |
| Color | Black |
| Materials | Steel, Plastic, Glass |
| Dimensions (HxWxD) | 548 x 250 x 482 mm (± 1% error) |
Expansion & Drive Bays
| Expansion Slots | 8 Horizontal + 3 Vertical (Riser cable required) |
| 3.5″ / 2.5″ Combo Bays | 2 |
| 2.5″ Bays | 2 |
Cooling Support
| Pre-installed Fans | Front: 3 x 120mm ARGB & PWM Fans Rear: 1 x 120mm ARGB & PWM Fan |
| Fan Support | Front: 3 x 120mm / 3 x 140mm Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm |
| Radiator Support | Front: Up to 420mm Top: Up to 360mm Rear: Up to 140mm |
Clearances & Compatibility
| Max CPU Cooler Height | 190mm |
| Max GPU Length | 420mm |
| Max PSU Length | 220mm |
| Power Supply Type | Standard ATX (Not Included) |
Features & I/O Panel
| I/O Panel | 1 x USB 3.1 Gen2 Type-C 2 x USB 3.0 Audio In & Out |
| Vertical GPU Mount | Yes (up to 160mm clearance with holder bracket) |
| RGB Lighting | Yes (Supports RGB Fusion 2.0) |
| Dust Filters | Top, Front, Bottom |
Weight & Accessories
| Net Weight | 13.4 Kg |
| Package Dimensions (HxWxD) | 594 x 336 x 584 mm |
| Accessories | Instruction Manual, Accessories Kit |
