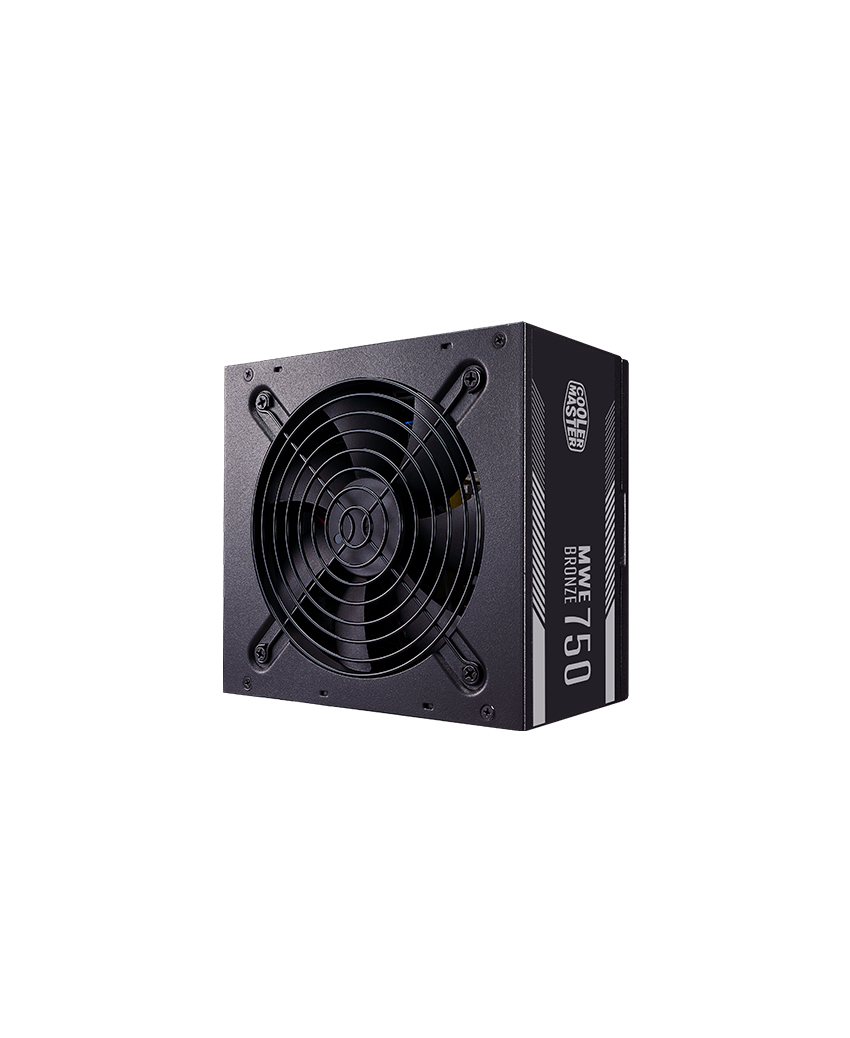

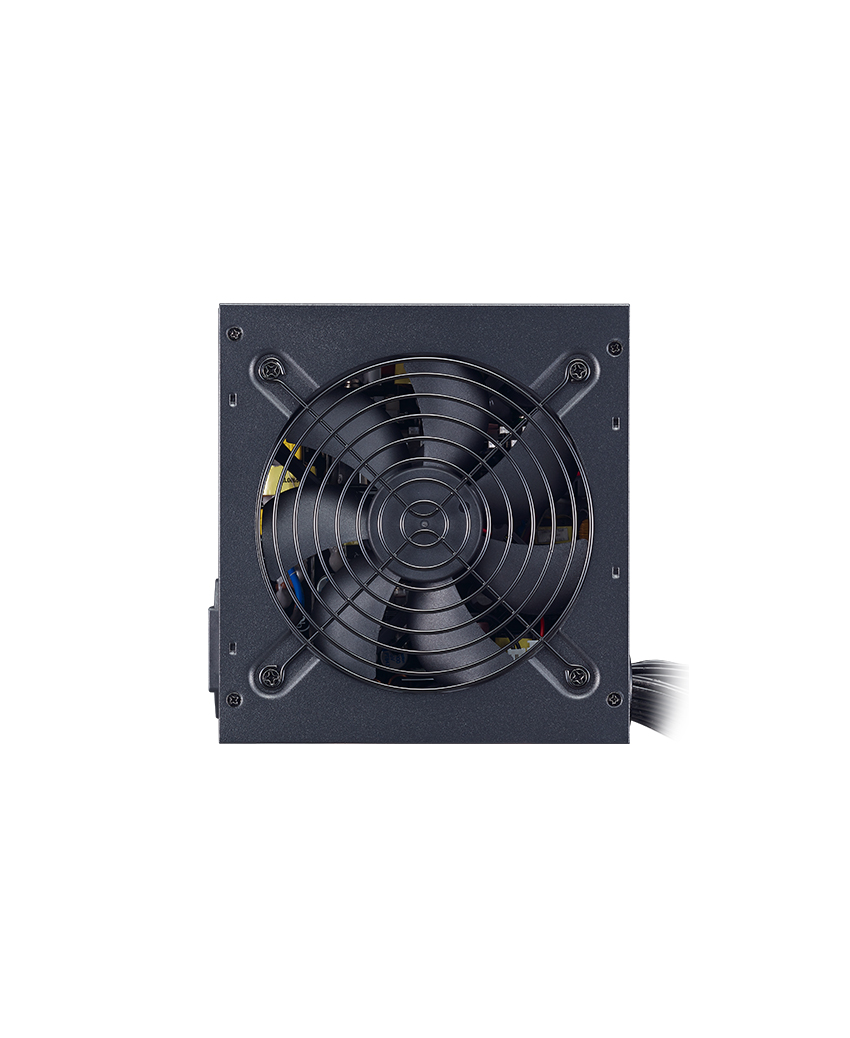

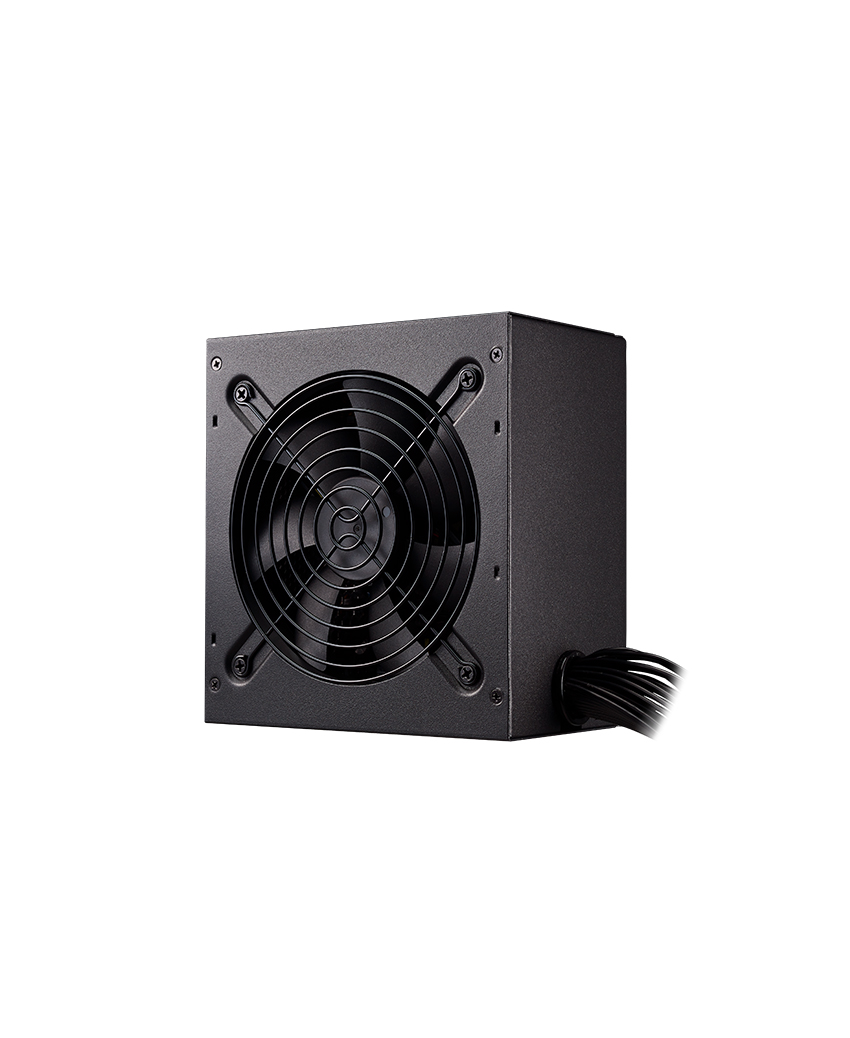

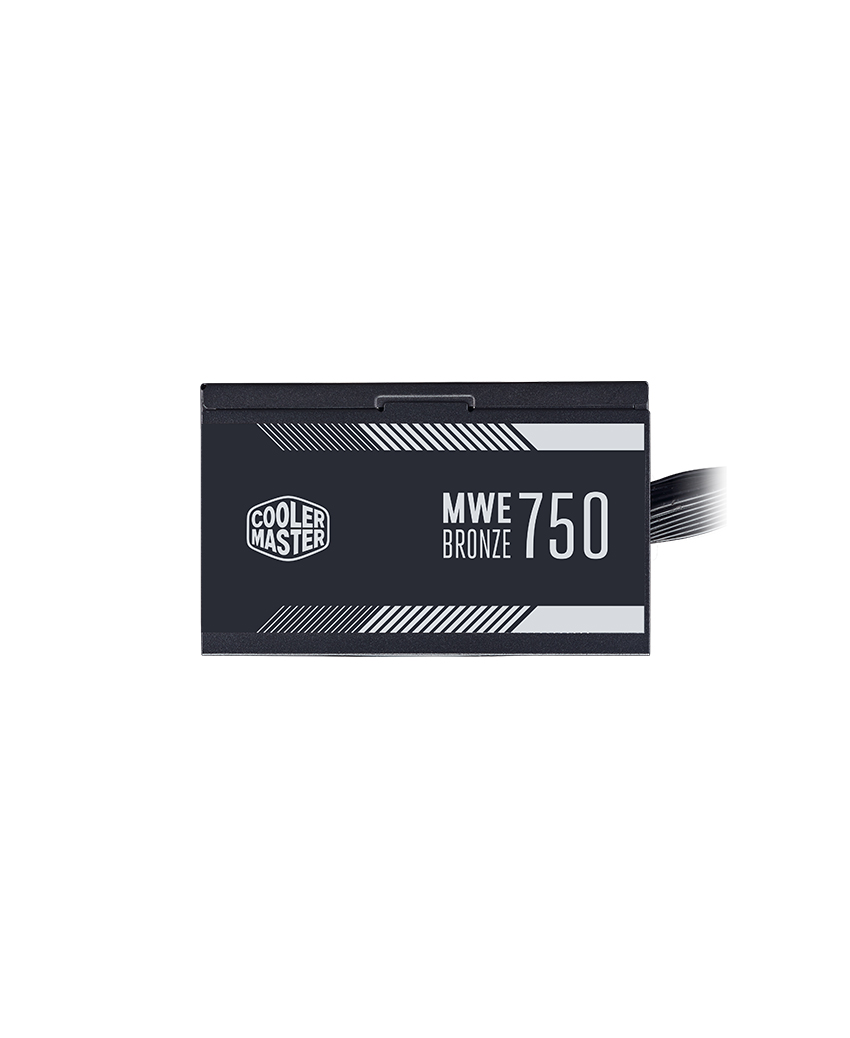

MWE 750 BRONZE – V2
80 PLUS BRONZE CERTIFIED POWER SUPPLY
DC-to-DC Technology
120mm HDB Fan
80 PLUS Bronze Efficiency
Flat, Black Cables
5 Year Warranty
MWE 750 BRONZE – V2
- MODEL
- MPE-7501-ACAAB
- ATX VERSION
- ATX 12V V2.52
- PFC
- Active PFC
- INPUT VOLTAGE
- 100-240V
- INPUT CURRENT
- 10-6A
- INPUT FREQUENCY
- 50-60Hz
- DIMENSIONS (L X W X H)
- 140 x 150 x 86 mm
- FAN SIZE
- 120mm
- FAN BEARING
- HDB
- FAN SPEED
- 2400 RPM
- NOISE LEVEL @ 20%
- 12.16 dBA
- NOISE LEVEL @ 50%
- 17.9 dBA
- NOISE LEVEL @ 100%
- 39.8 dBA
- EFFICIENCY
- 85% Typically
- 80 PLUS RATING
- 80 PLUS Bronze
- ERP 2014 LOT 3
- Yes
- OPERATING TEMPERATURE
- 40°C
- POWER GOOD SIGNAL
- 100 – 500 ms
- HOLD UP TIME
- >18ms at 100% Full Load@230Vac
- MTBF
- >100,000 Hours
- PROTECTIONS
- OVP, OPP, SCP, UVP, OTP
- REGULATORY
- CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
- ATX 24-PIN CONNECTORS
- 1
- EPS 4+4 PIN CONNECTORS
- 1
- EPS 8 PIN CONNECTOR
- 1
- SATA CONNECTORS
- 8
- PERIPHERAL 4-PIN CONNECTORS
- 4
- PCI-E 6+2 PIN CONNECTORS
- 4
- 80 PLUS
- Bronze
- MODULAR
- Non Modular
- WATTAGE
- 500 to 750W
- SERIES
- MWE Bronze Series
