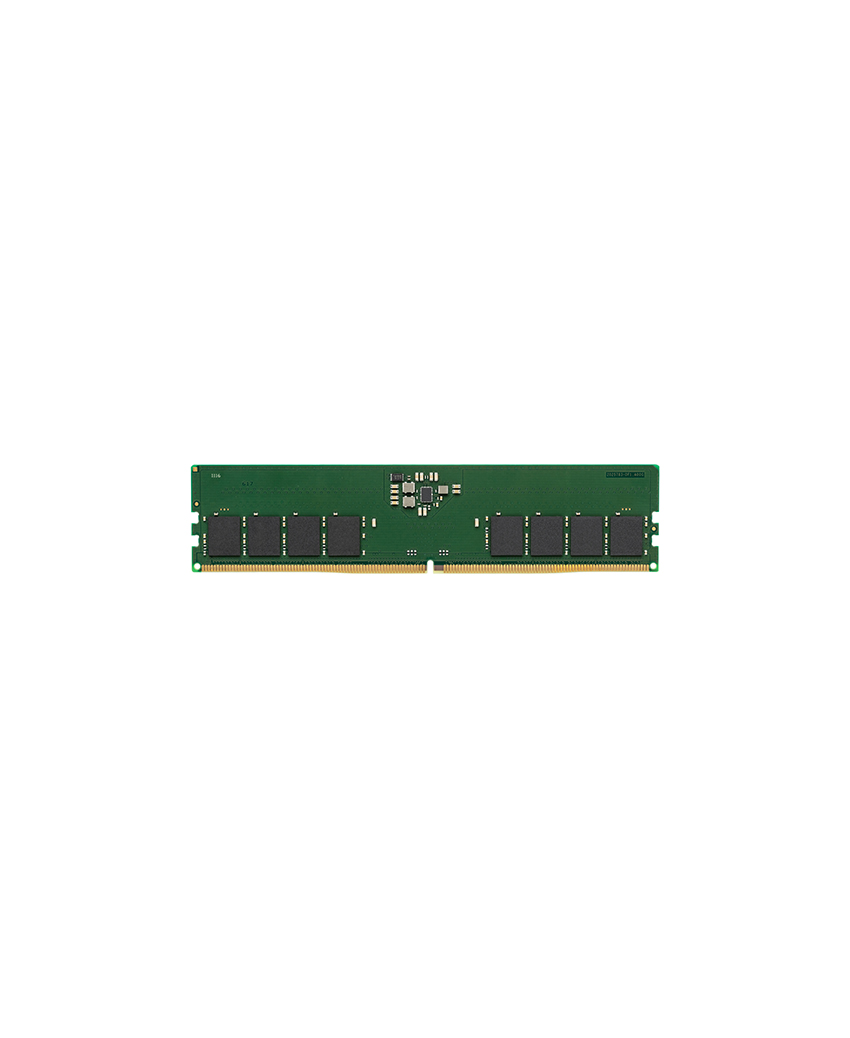

KVR48U40BD8-32
32GB 2Rx8 4G x 64-Bit PC5-4800 CL40 288-Pin DIMM
| DESCRIPTION | |
| Details | ValueRAM’s KVR48U40BD8-32 is a 4G x 64-bit (32GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. |
| SPECIFICATIONS | |
| CL(IDD) | 40 cycles |
| Row Cycle Time (tRCmin) | 48ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns (min.) |
| Row Active Time (tRASmin) | 32ns (min.) |
| UL Rating | 94 V – 0 |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| FEATURES | |
| Power Supply | VDD = 1.1V Typical |
| VDDQ | 1.1V Typical |
| VPP | 1.8V Typical |
| VDDSPD | 1.8V to 2.0V |
| ECC | On-Die ECC |
| PCB | Height 1.23” (31.25mm) |
| Compliance | RoHS Compliant and Halogen-Free |
