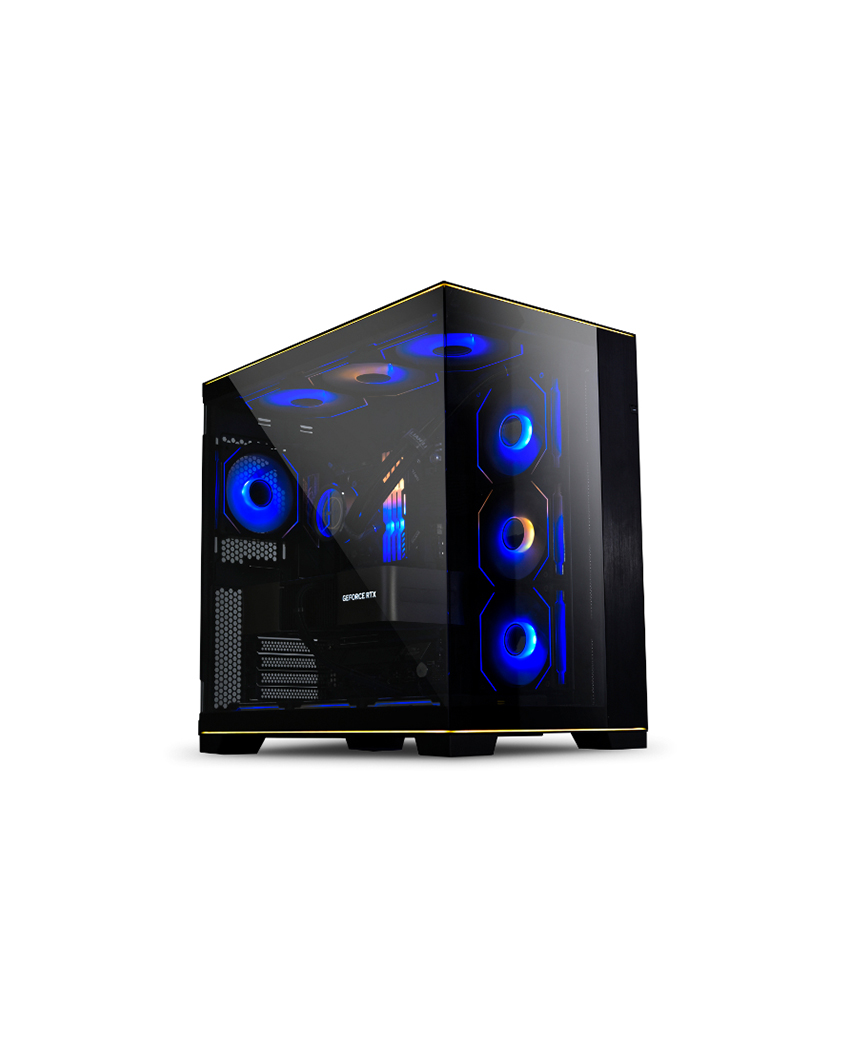

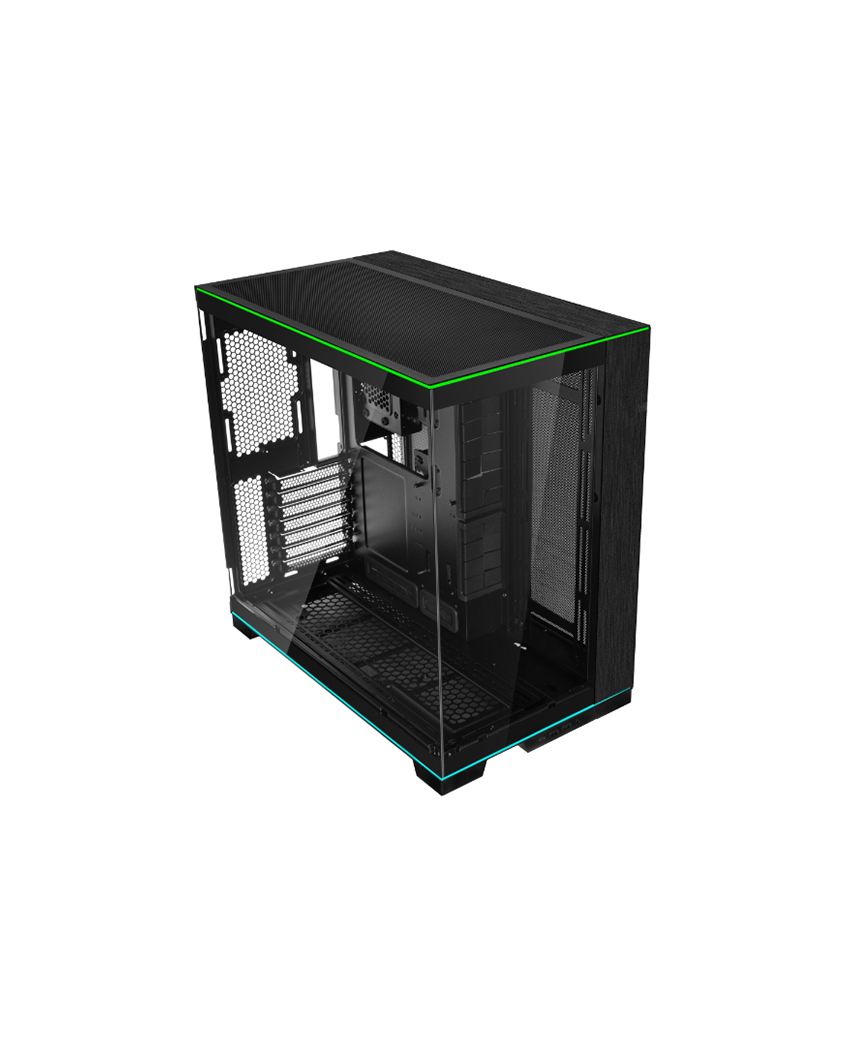

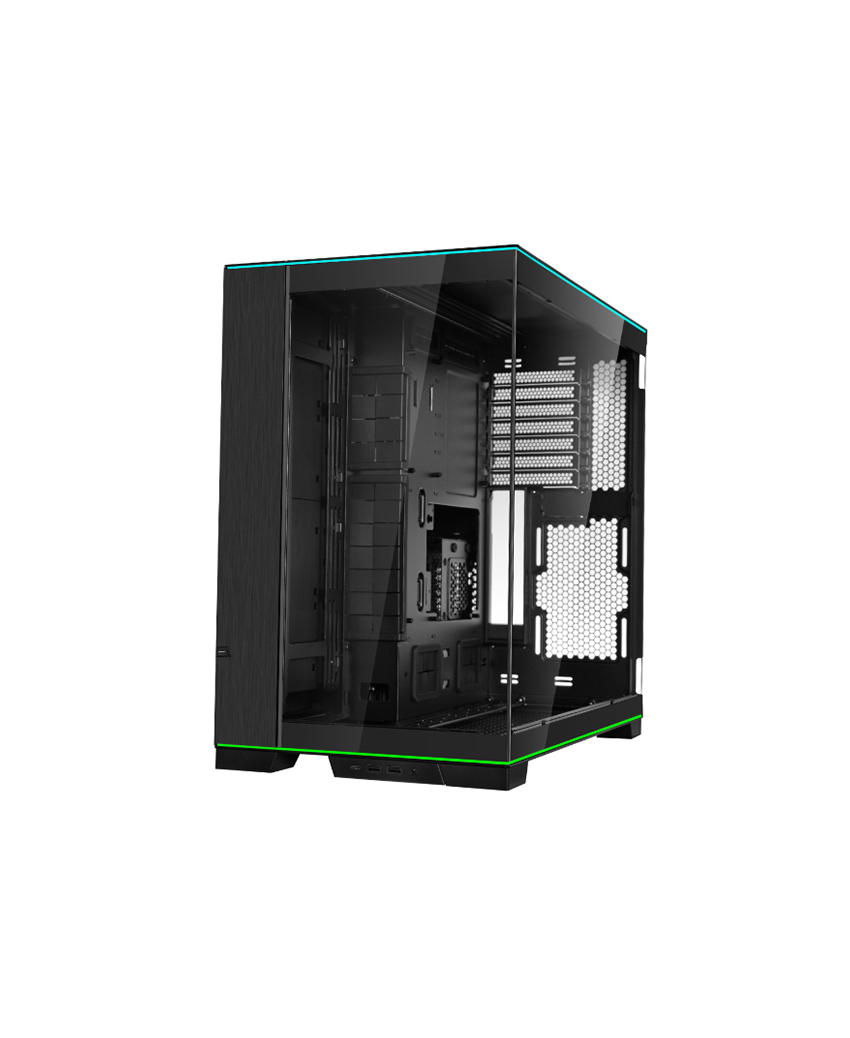

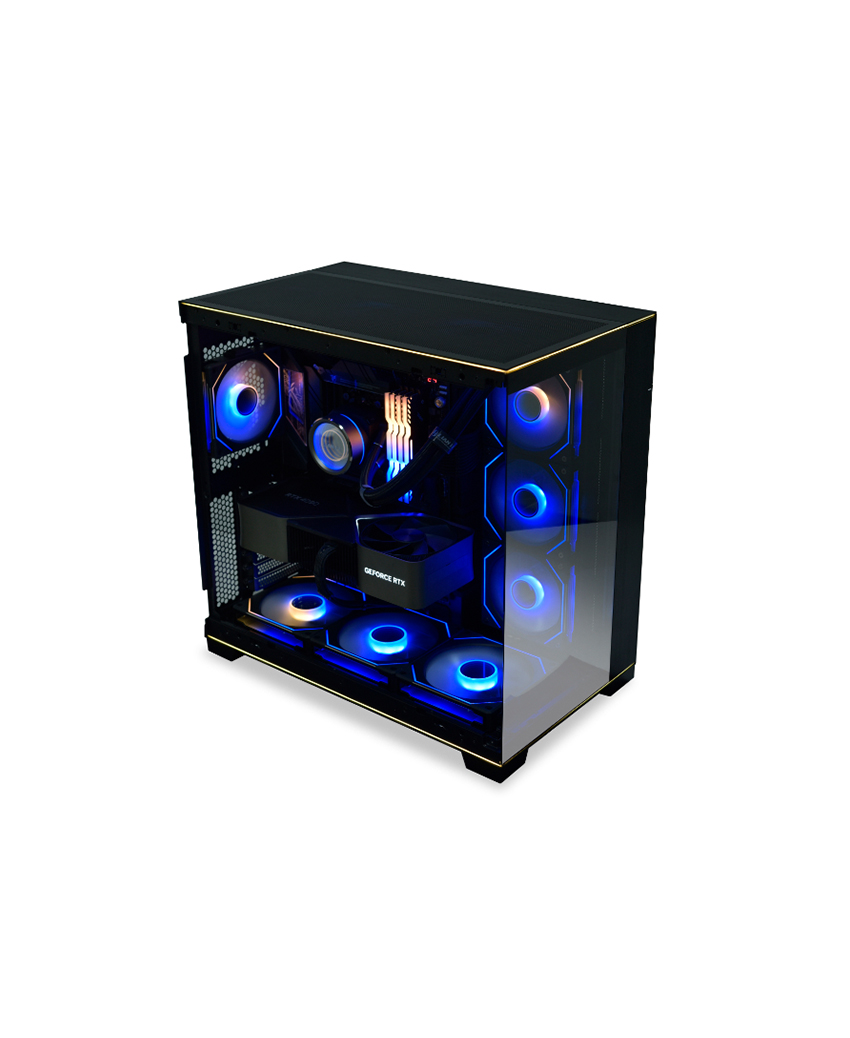

O11 DYNAMIC EVO RGB
SPECIFICATIONS
| MODEL NAME | O11 DYNAMIC EVO RGB | |
|---|---|---|
| MODEL NO. | O11DERGBX | O11DERGBW |
| CASE TYPE | Tower Chassis | |
| COLOR | Black | White |
| DIMENSIONS | （D）478mm × （W）290mm ×（H）471mm | |
| MATERIAL | 4.0mm tempered glass、Aluminum 、Steel | |
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX | |
| EXPANSION SLOT | 7 | |
| STORAGE | Side Fan Bracket:2 × 3.5″ HDD or 4 × 2.5″ SSD Behind MB Tray: 2 × 2.5″ SSD Hard Drive Cage：2 × 3.5″ HDD or 2.5″ SSD |
|
| RADIATOR SUPPORT | Top: 240mm × 1 or 360mm × 1 or 420mm × 1 Side: 240mm × 1 or 280mm × 1 or 360mm × 1 Bottom: 240mm × 1 or 280mm × 1 or 360mm × 1 |
|
| FAN SUPPORT | Top: 120mm × 3 or 140mm × 3 Side: 120mm × 3 or 140mm × 3 Bottom: 120mm × 3 or 140mm × 3 Rear: 120mm × 1 |
|
| GPU LENGTH CLEARANCE | 455.7mm（Max） | |
| CPU COOLER HEIGHT CLEARANCE | 167mm（MAX） | |
| PSU SUPPORT | ATX (Under 220mm) | |
| i/O PORTS | USB 3.0 × 2 USB 3.1 TYPE-C × 1 Audio × 1 Color Button × 1 Mode Button × Brightness Button × 1 Reset Button × 1 Power Button × 1 |
|
| DUST FILTER | 1 × Bottom | |
| WARRANTY | 1 year | |
