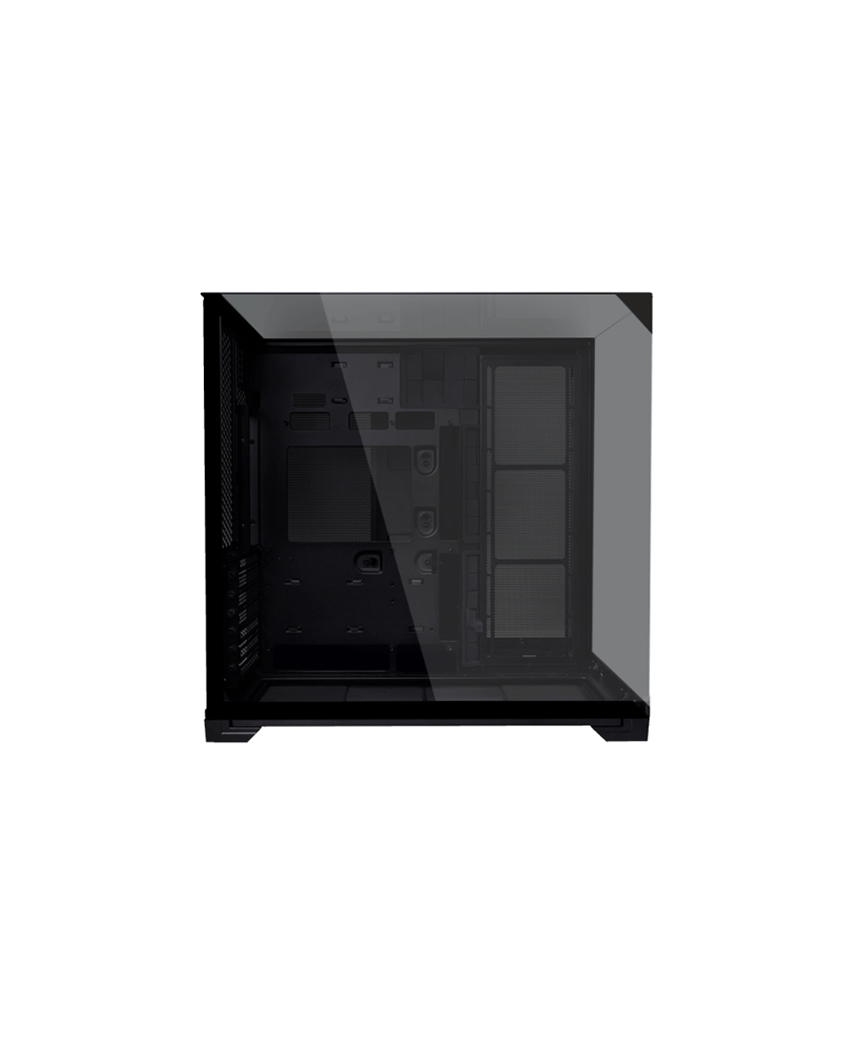

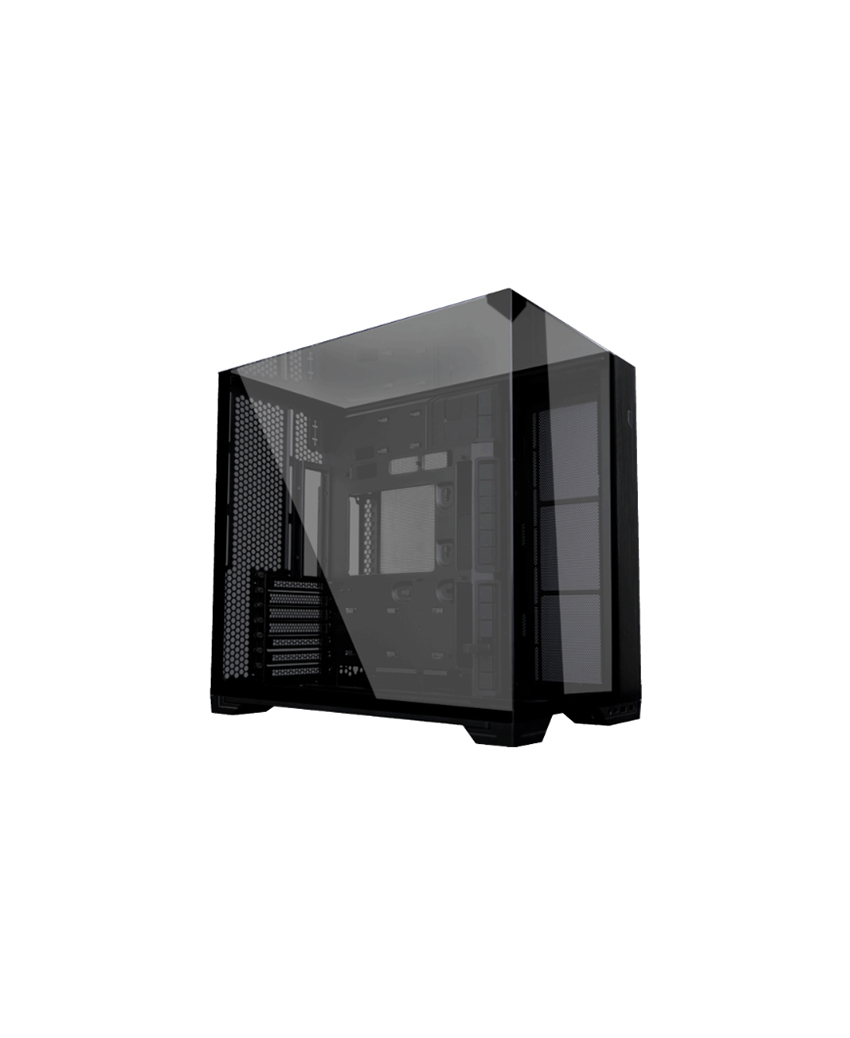

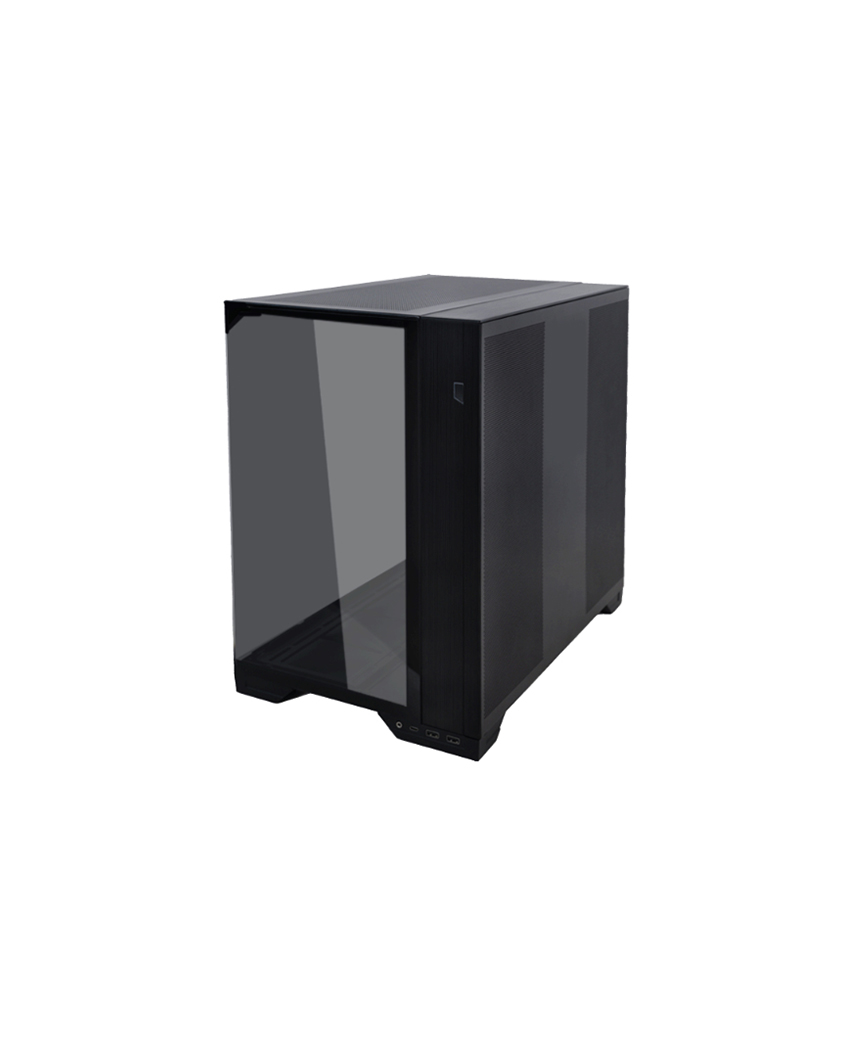

O11 VISION COMPACT
SPECIFICATIONS
| MODEL | O11 VISION COMPACT | ||
|---|---|---|---|
| Model No. | O11VPX Black | O11VPW White | |
| COLOR | Black | White | |
| CASE TYPE | Tower Chassis | ||
| DIMENSION | (D)447.5mm x (W)287.5mm x (H)446.4mm | ||
| MATERIAL | Steel, 4.0mm tempered glass, 3.0mm tempered glass, Aluminium |
||
| MOTHERBOARD SUPPORT | Back-Connect ATX/ E-ATX (Under 280mm) / ATX / Micro-ATX / Mini-ITX | ||
| EXPANSION SLOT | 6+1 | ||
| STORAGE | Behind MB Tray: 2 x 2.5″ SSD Hard drive cage: 2 x 3.5″ HDD or 2.5″ SSD |
||
| GPU LENGTH CLEARANCE | 408mm (Max.) | ||
| CPU COOLER HEIGHT CLEARANCE | 167mm (Max.) | ||
| PSU SUPPORT | ATX (Under 220mm) | ||
| FAN SUPPORT | Top: 120mm x 3 or 140mm x 2 Side: 120mm x 3 Bottom: 120mm x 3 Rear: 120mm x 2 |
||
| RADIATOR SUPPORT | Top: 240mm x 1 or 280mm x 1 or 360mm x 1 Side: 240mm x 1 or 360mm x 1 Bottom: 240mm x 1 or 360mm x 1 |
||
| I/O PORTS | Power Button x 1 USB 3.0 x 2 USB 3.1 TYPE-C x 1 Audio x 1 |
||
| DUST FILTER | Bottom × 1 | ||
