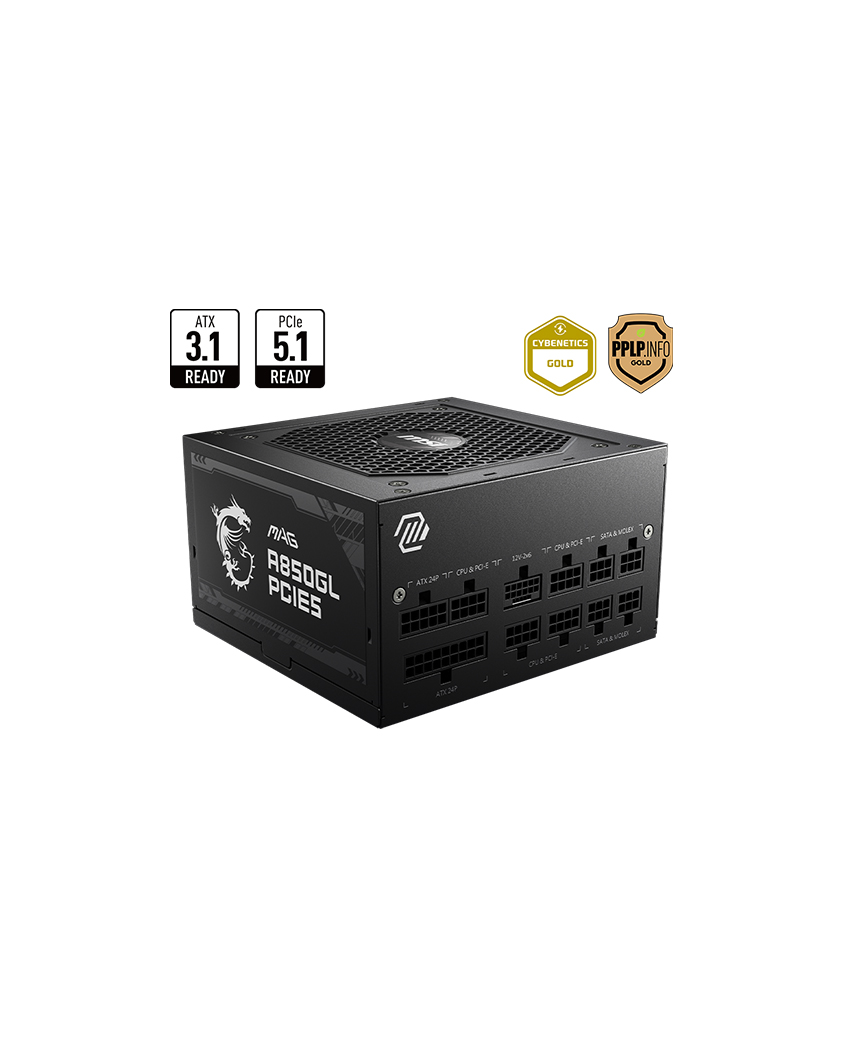

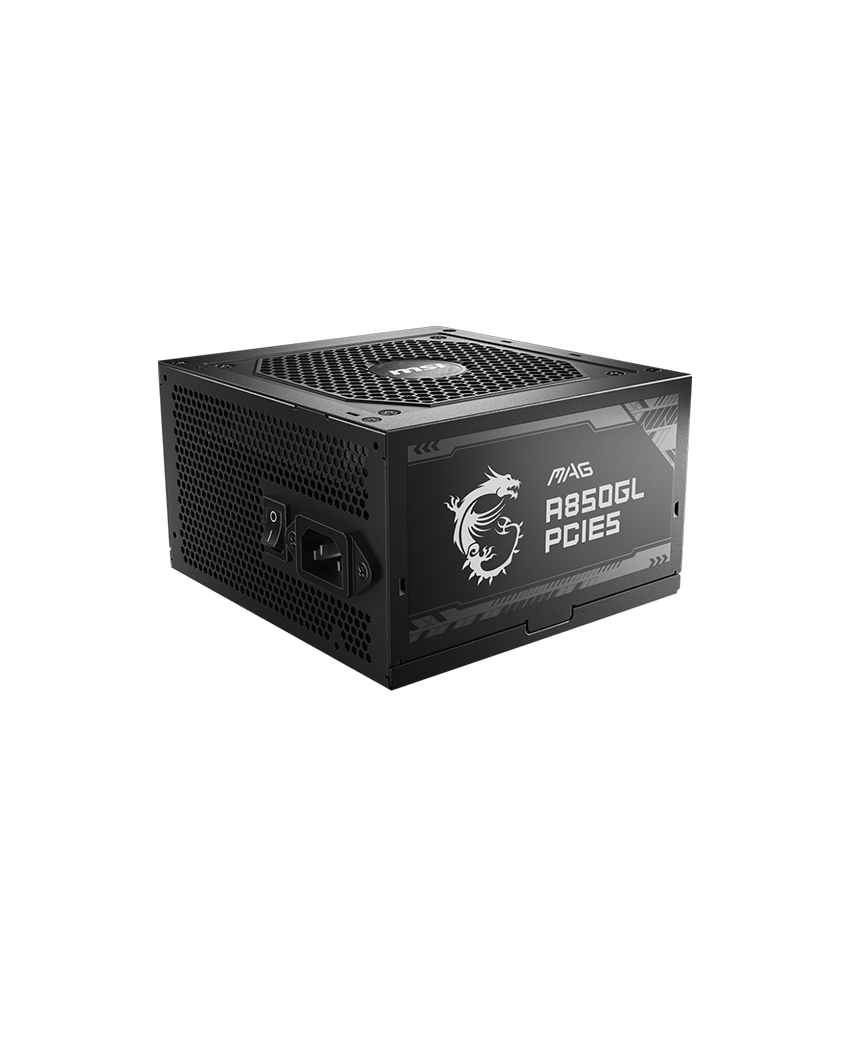

MAG A850GL PCIE5

• Efficiency Rating

• Modular

Yes (full modular)

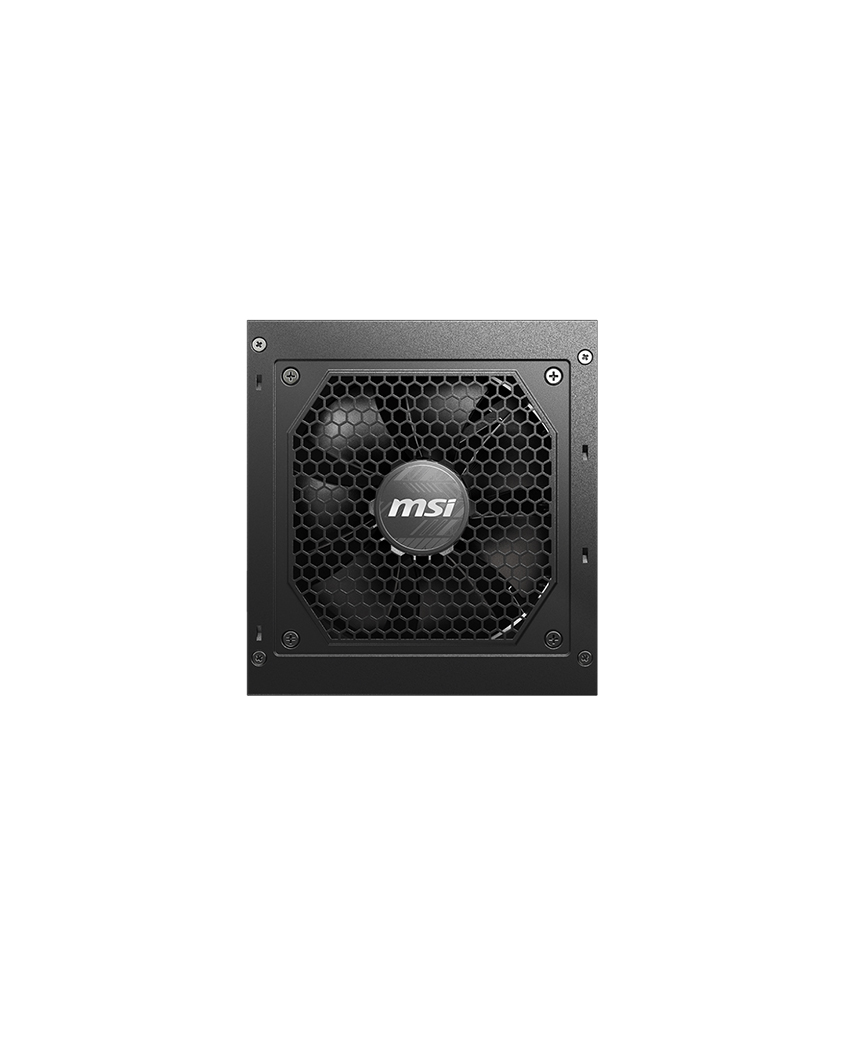

• Fan Size

120 mm

• Fan Bearing

Fluid Dynamic Bearing

• Dimensions (DxWxH)

140 x 150 x 86 mm

• PFC Type

Active PFC

• Input Voltage Range

100~240 VAC

• Power Watt

850W

• Power Excursion

1700W (*up to 200% of the PSU’s rated power for 100μs)

• Input Frequency Range

47-63Hz

• Protection

OCP / OVP / OPP / OTP / SCP / UVP

• ATX (24 pin)

1

• EPS (4+4 pin)

2

• PCI-E 5.0 (16 pin)

1 (600W)

• PCI-E (6+2 pin)

4

• SATA (15 pin)

8

• PERIPHERAL (4 pin)

4

• FDD (4 pin)

1
