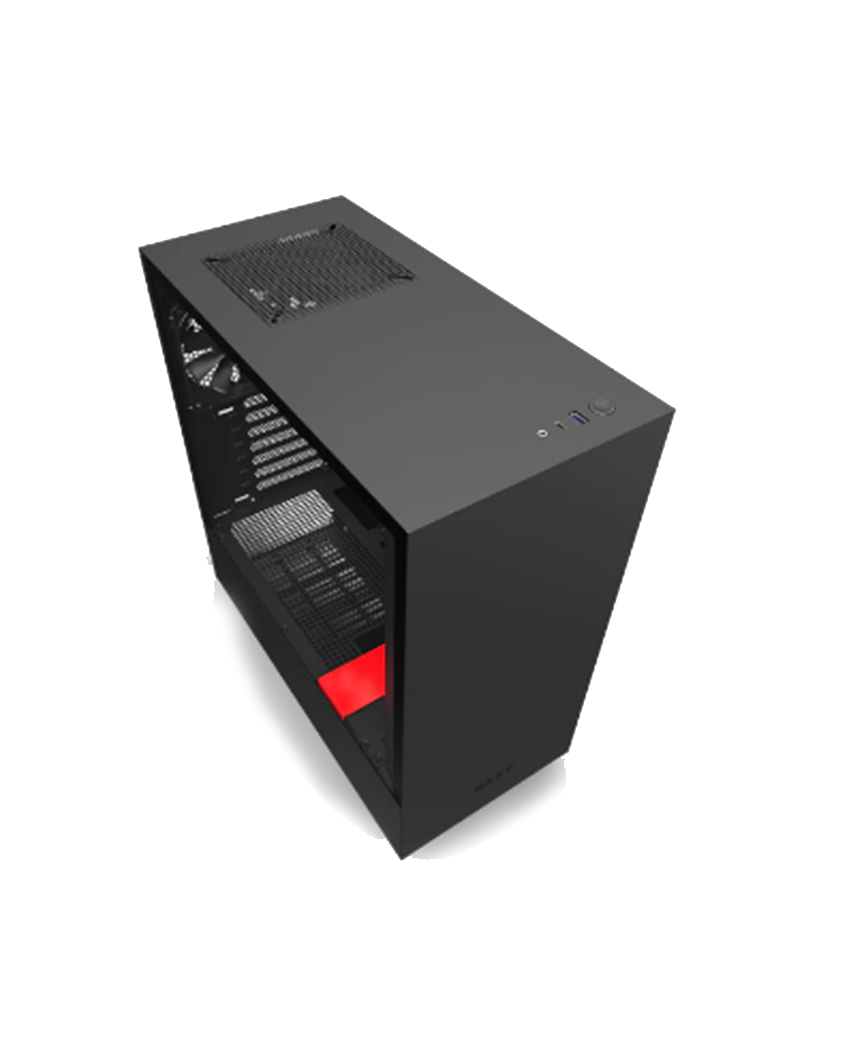

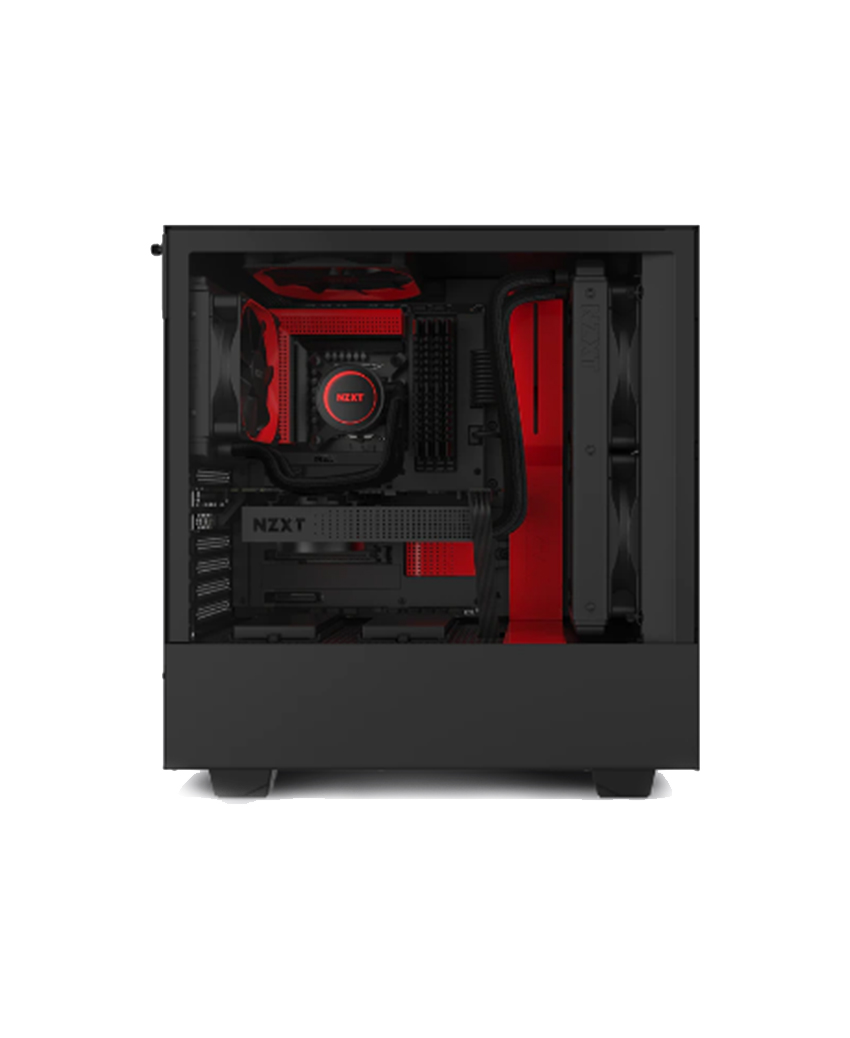

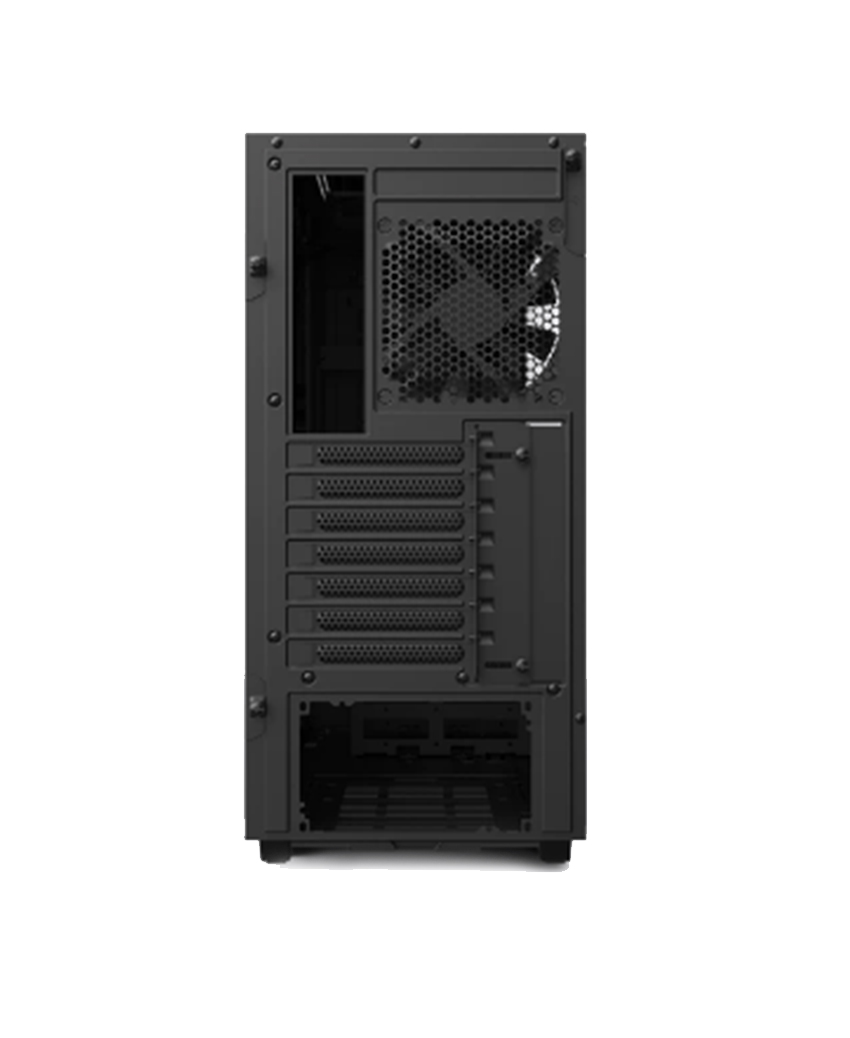

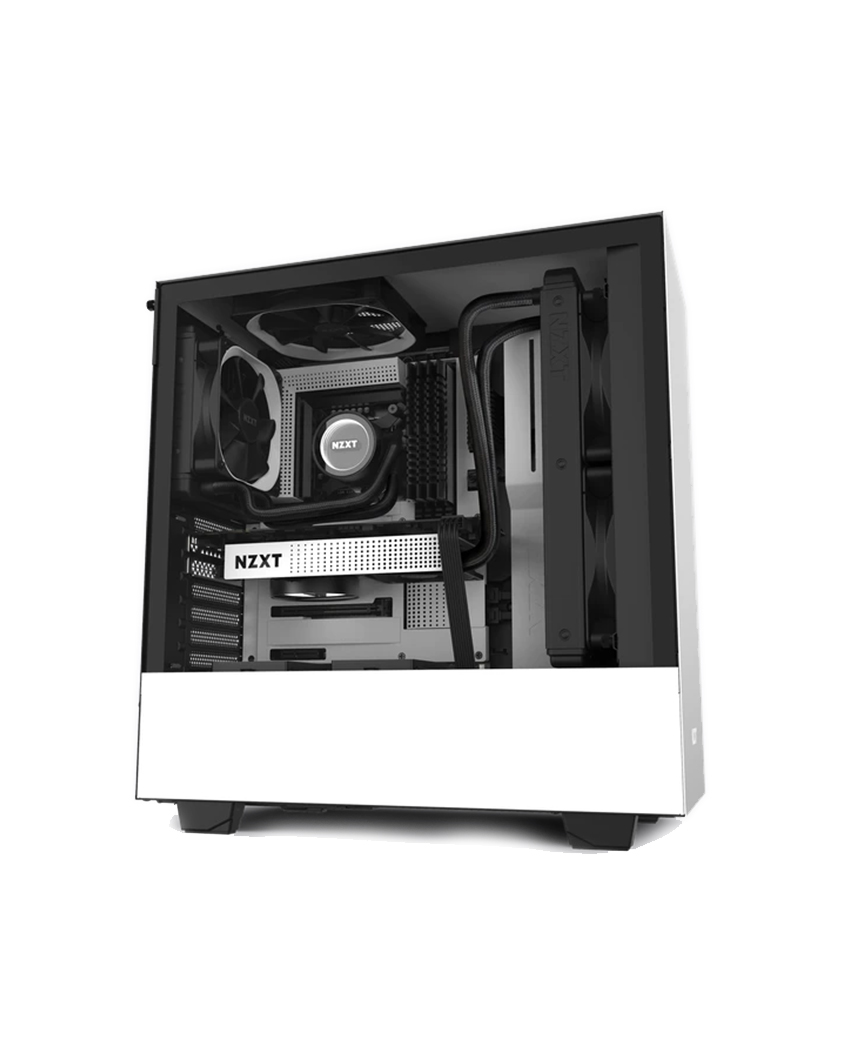

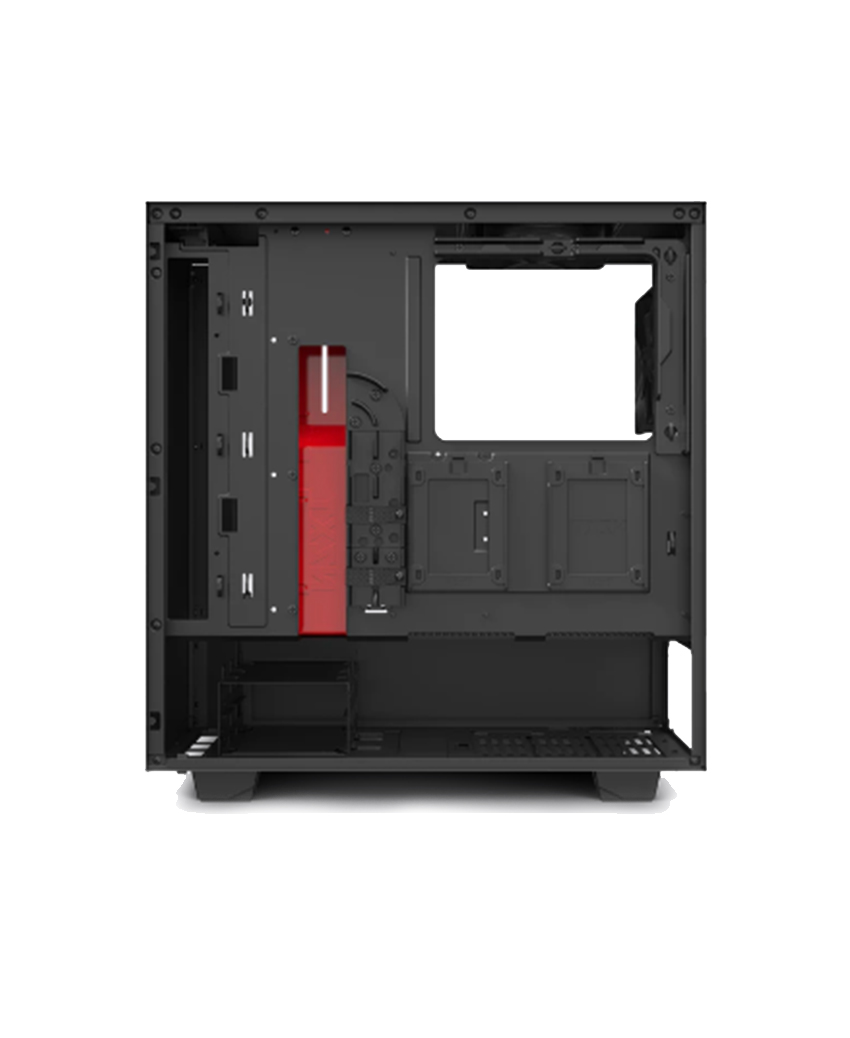

NZXT H510
Technical Specifications
| Key Specifications | |
|---|---|
| Enclosure Type | Compact Mid-Tower |
| Case Material | SGCC Steel, Tempered Glass |
| Motherboard Support | Mini-ITX, MicroATX, ATX |
| Dimensions & Weight | |
| Dimensions (H x W x D) | 460mm x 210mm x 428mm |
| Weight | 6.6 kg / 14.55 lb |
| Clearances & Expansion | |
| Max CPU Cooler Clearance | 165mm |
| Max GPU Clearance | 381mm |
| Front Radiator Clearance | 60mm |
| Cable Management | 19 – 23mm |
| Expansion Slots | 7 |
| Drive Bays | 2.5″: 2 + 1 3.5″: 2 + 1 |
| Cooling | |
| Fan Support |
Front: 2 x 120mm / 2 x 140mm Top: 1 x 120mm / 1 x 140mm Rear: 1 x 120mm |
| Radiator Support |
Front: up to 280mm Rear: 120mm |
| Included Fan (Aer P 120mm) | Speed: 1,200 ± 200RPM, Airflow: 50.42 CFM, Noise: 28 dBA, Connector: 3-pin |
| Filters | All air intakes |
| I/O & General | |
| Front I/O Ports | 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x Headset Audio Jack |
| Model Number | CA-H510B-W1 |
| Warranty | 2 Years |
