H510i

Technical Specifications

Key Specifications
Enclosure Type Compact Mid-Tower
Case Material SGCC Steel, Tempered Glass
Motherboard Support Mini-ITX, MicroATX, ATX
Dimensions & Weight
Dimensions (H x W x D) 460mm x 210mm x 428mm
Weight 6.8 kg / 15 lbs
Clearances & Expansion
Max CPU Cooler Clearance 165mm
Max GPU Clearance 321 – 381mm
Vertical GPU Clearance 50.8mm
Front Radiator Clearance 60mm
Cable Management 19 – 23mm
Expansion Slots Standard: 7
Vertical: 2
Drive Bays 2.5″: 2 + 1
3.5″: 2 + 1
Cooling
Fan Support Front: 2 x 120mm / 2 x 140mm
Top: 1 x 120mm / 1 x 140mm
Rear: 1 x 120mm
Radiator Support Front: up to 280mm
Rear: 120mm
Included Fan (Aer P 120mm) Speed: 1,200 ± 200RPM, Airflow: 50.42 CFM, Noise: 28 dBA, Connector: 3-pin
Filters All air intakes
I/O & Smart Device
Front I/O Ports 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1 Type-C, 1x Headset Audio Jack
Smart Device Fan Channels 3 (10W max per channel)
Smart Device RGB Connector 2 (Supports up to 40 LEDs)

3,700 EGP

17 People watching this product now!

Description

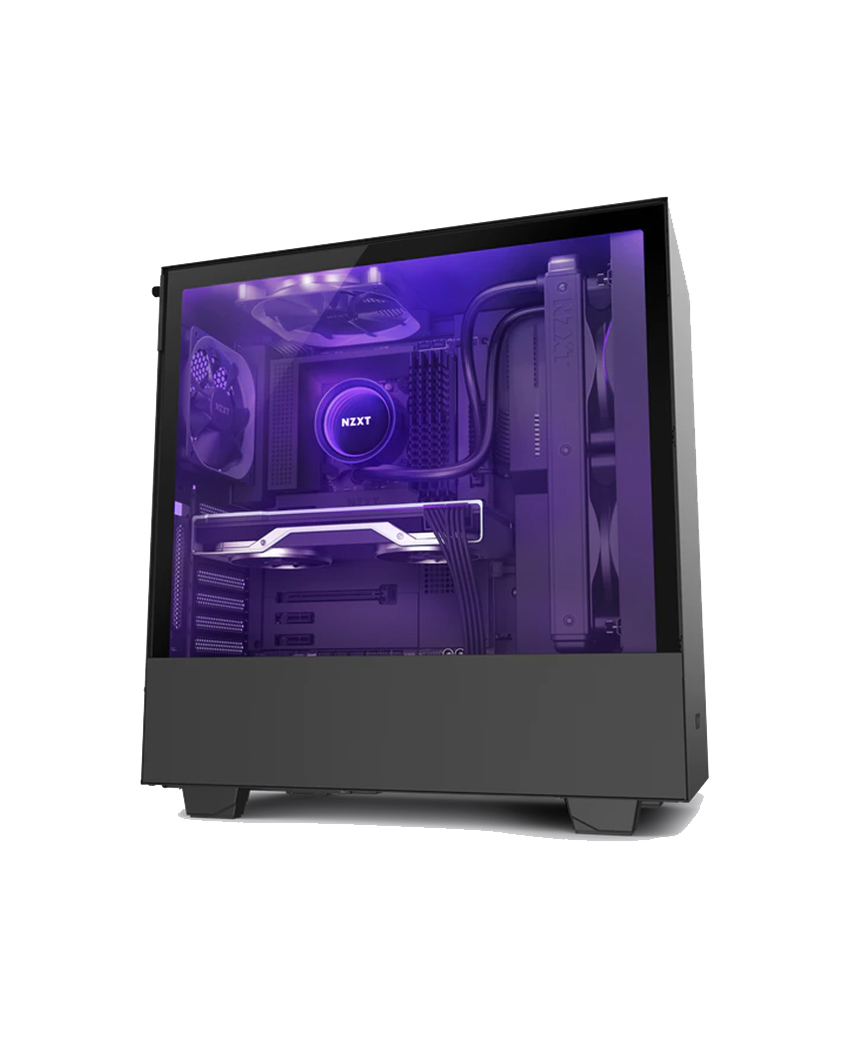

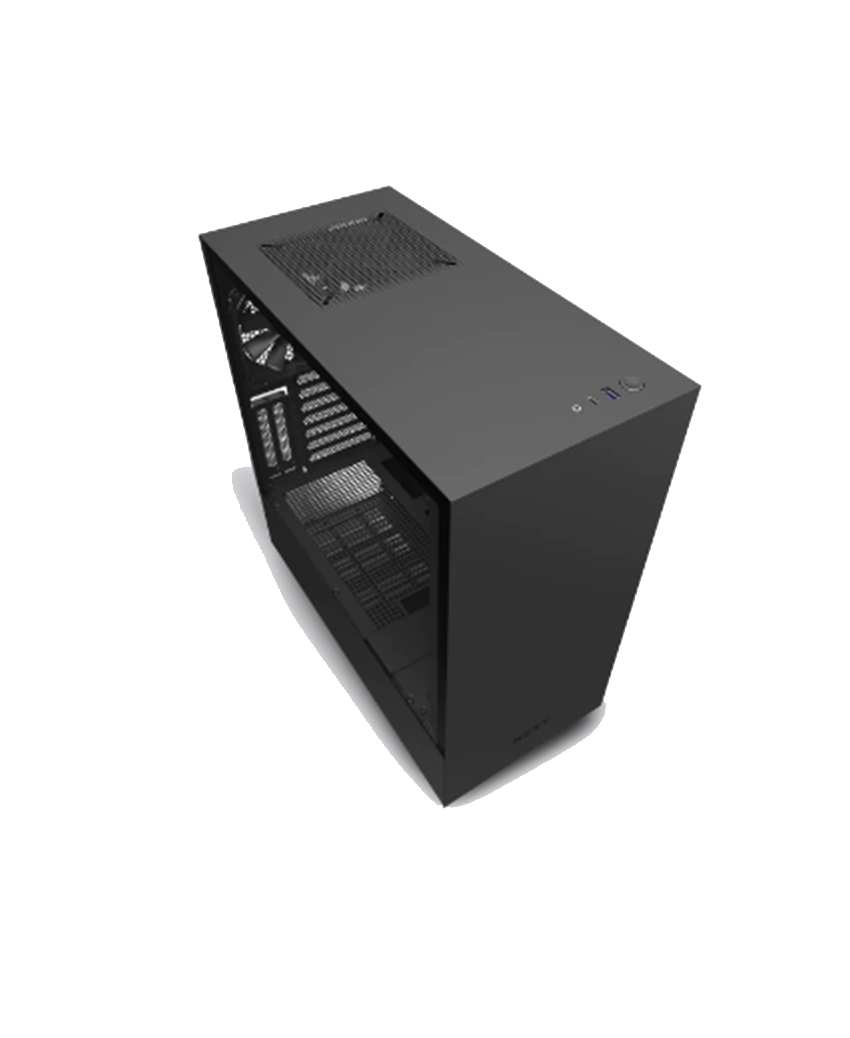

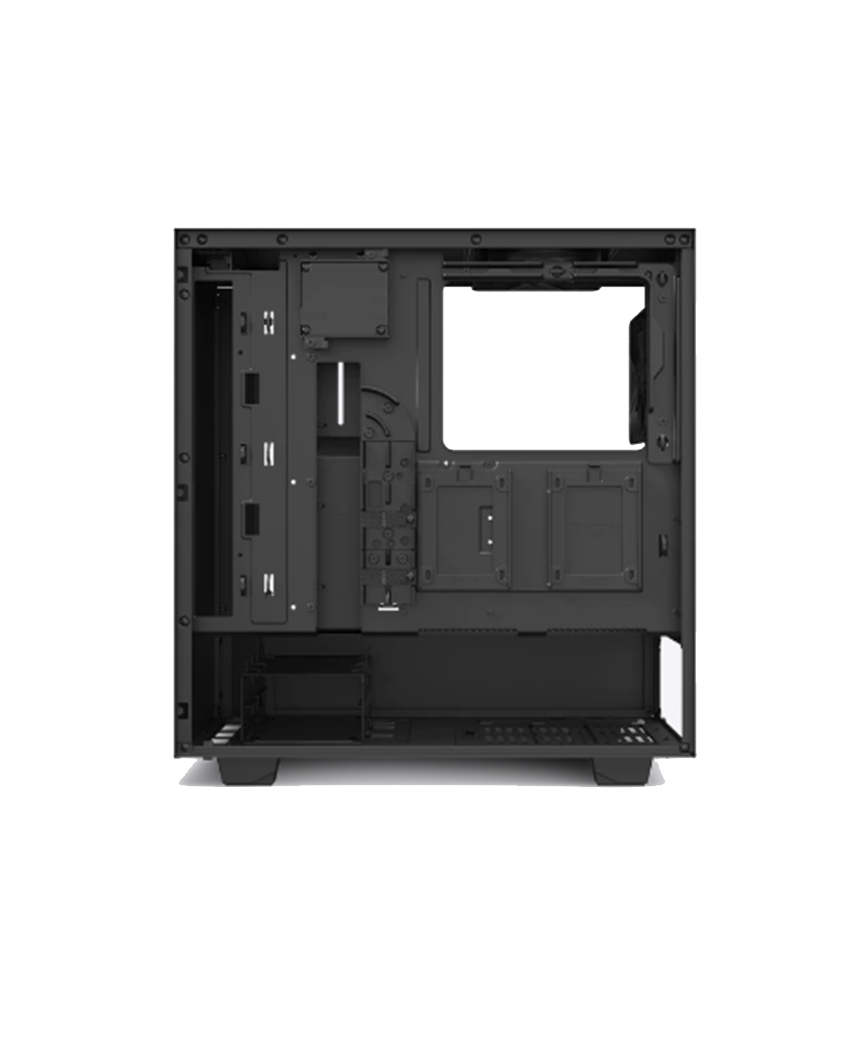

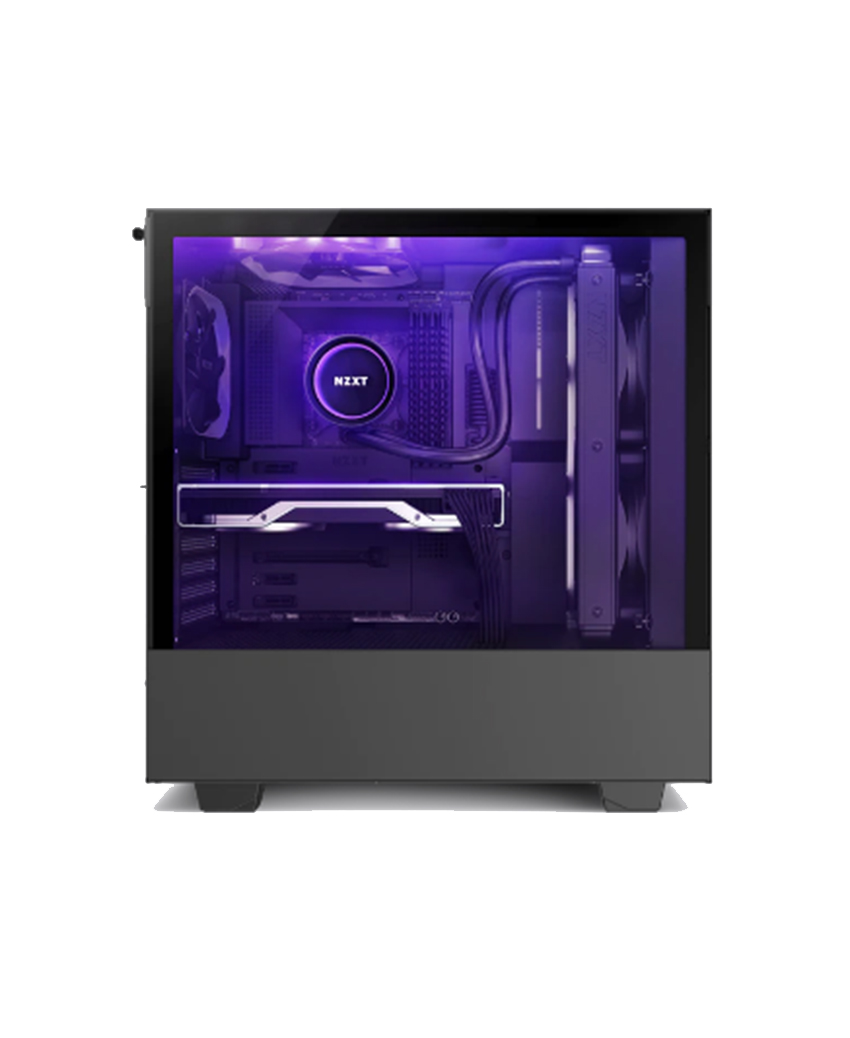

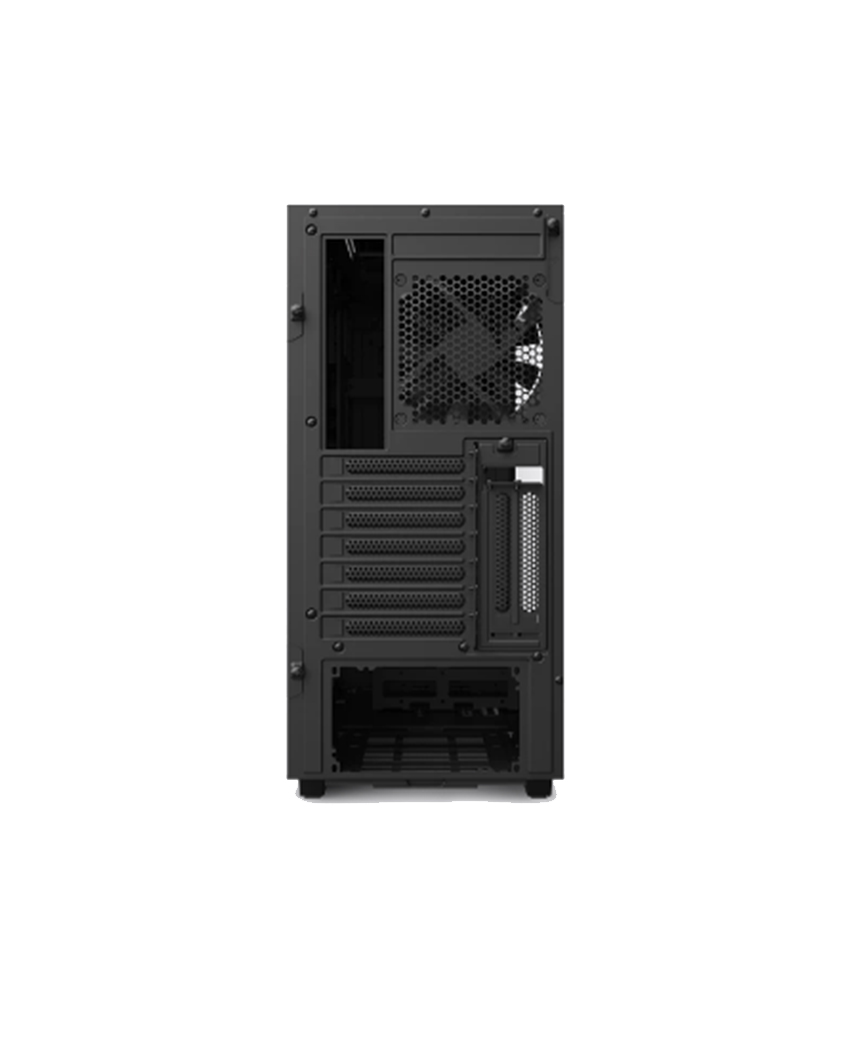

H510i

Compact Mid-Tower Case with RGB

Taking it a step up from the H510, the H510i brings even more features to the H Series.

  • Pre-installed RGB LED Strips for instant, vibrant lighting.
  • Built-in mounting bracket for installing your GPU vertically.
  • Lighting and fan control supported by the CAM Smart Device V2.
  • Cable routing kit with pre-installed channels and straps for clean and easy wiring.
  • USB 3.1 Gen 2-compatible USB-C connector on the front panel.
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
  • Two Aer F120mm fans and a removable filter on the PSU intake are included.
  • Removable bracket designed for radiators up to 280mm simplifies liquid cooling installation.

*Case version fans and specs may vary from the retail version.

Inside the Box

Item Quantity
H510i Case 1
Aer F 120mm (Case Version) 2
Smart Device V2 1
Integrated LED Strips 2
Headset Audio Jack Splitter 1
Breakout Cable 1
Installation Accessories 1
Manual 1
