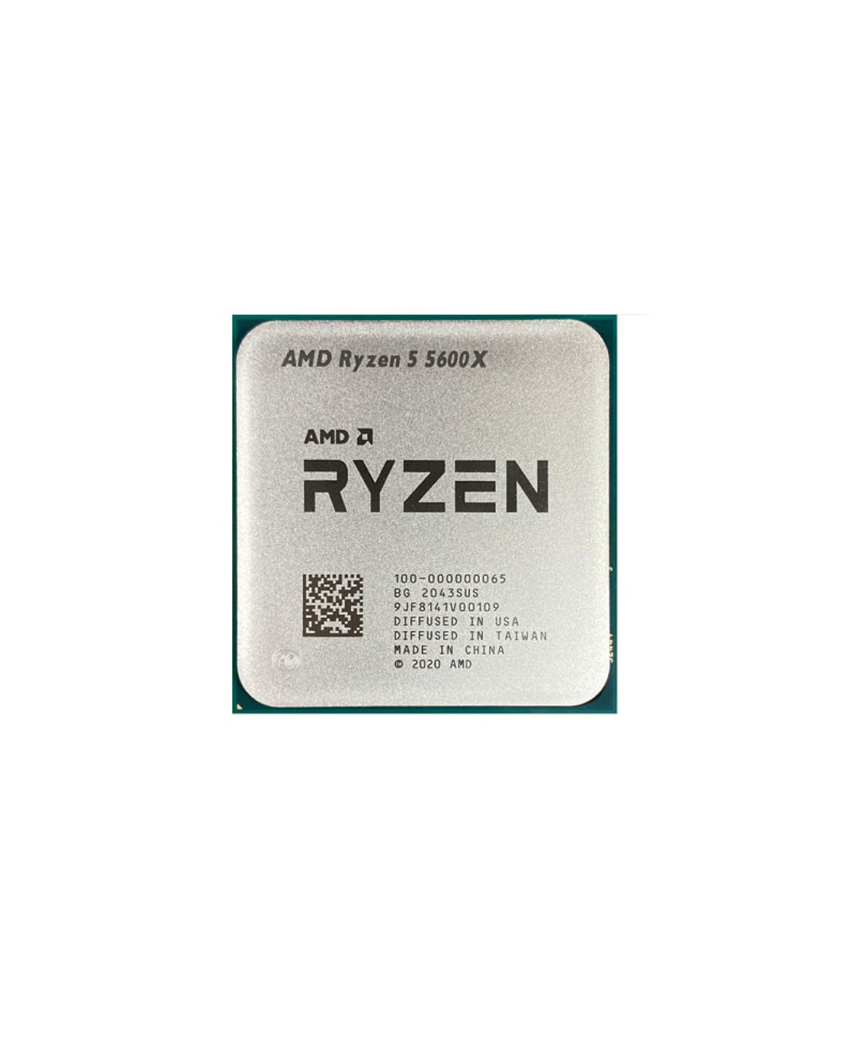

Ryzen™ 5 5600X Desktop Processors
Specifications
General Specifications
| # of CPU Cores | 6 |
| # of Threads | 12 |
| Base Clock | 3.7GHz |
| Max Boost Clock | Up to 4.6GHz |
| Total L2 Cache | 3MB |
| Total L3 Cache | 32MB |
| Unlocked | Yes |
| CMOS | TSMC 7nm FinFET |
| Package | AM4 |
| PCI Express® Version | PCIe 4.0 |

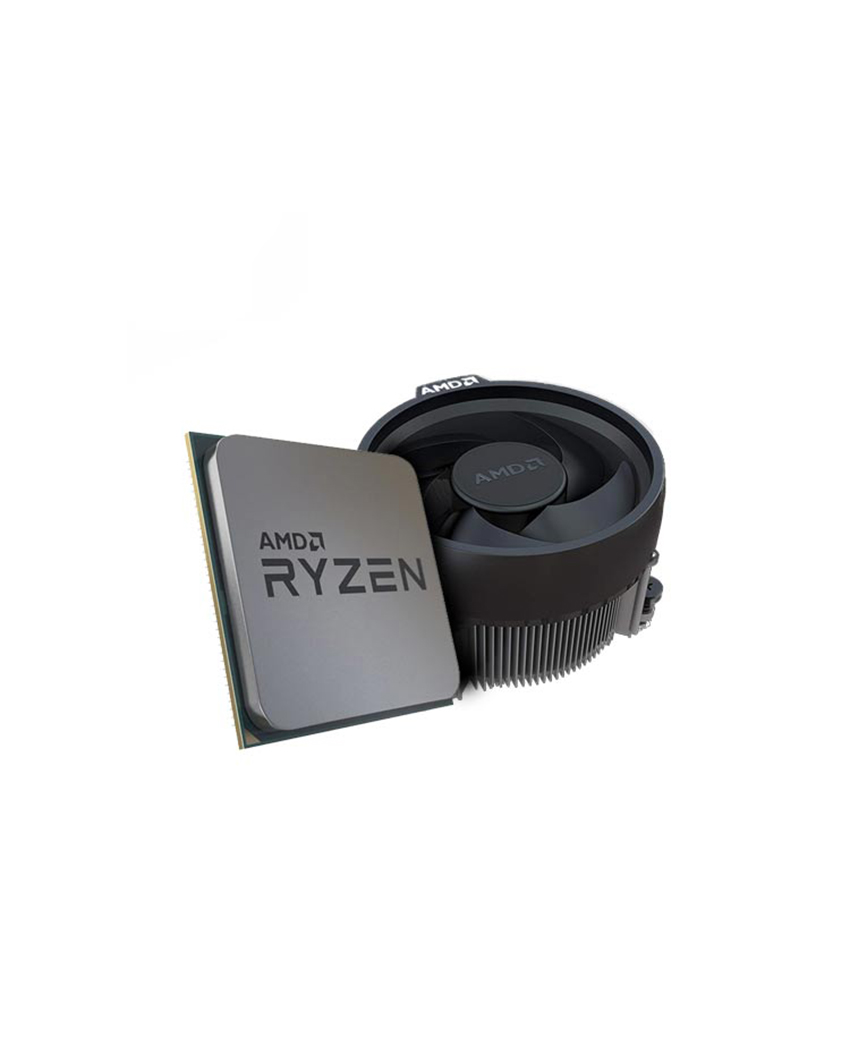

| Thermal Solution (PIB) | Wraith Stealth |
| Default TDP / TDP | 65W |
| Max Temps | 95°C |
| OS Support | Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
System Memory
| System Memory Specification | Up to 3200MHz |
| System Memory Type | DDR4 |
Key Features
| Supported Technologies | AMD “Zen 3” Core Architecture AMD StoreMI Technology AMD Ryzen™ Master Utility AMD Ryzen™ VR-Ready Premium |
Foundation
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 5 Desktop Processors |
| Platform | Boxed Processor |
| OPN Tray | 100-000000065 |
| OPN PIB | 100-100000065BOX |
| OPN MPK | 100-100000065MPK |
| Launch Date | 11/5/2020 |
