Model Code (Capacity)¹⁾

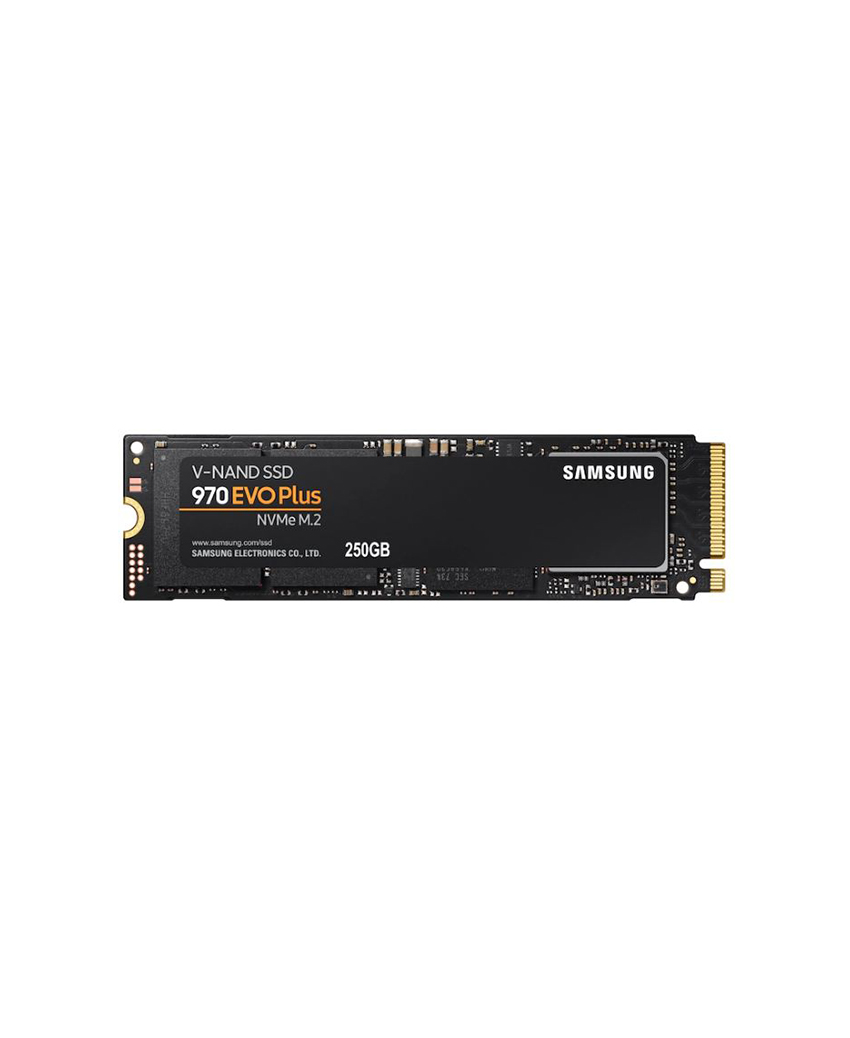

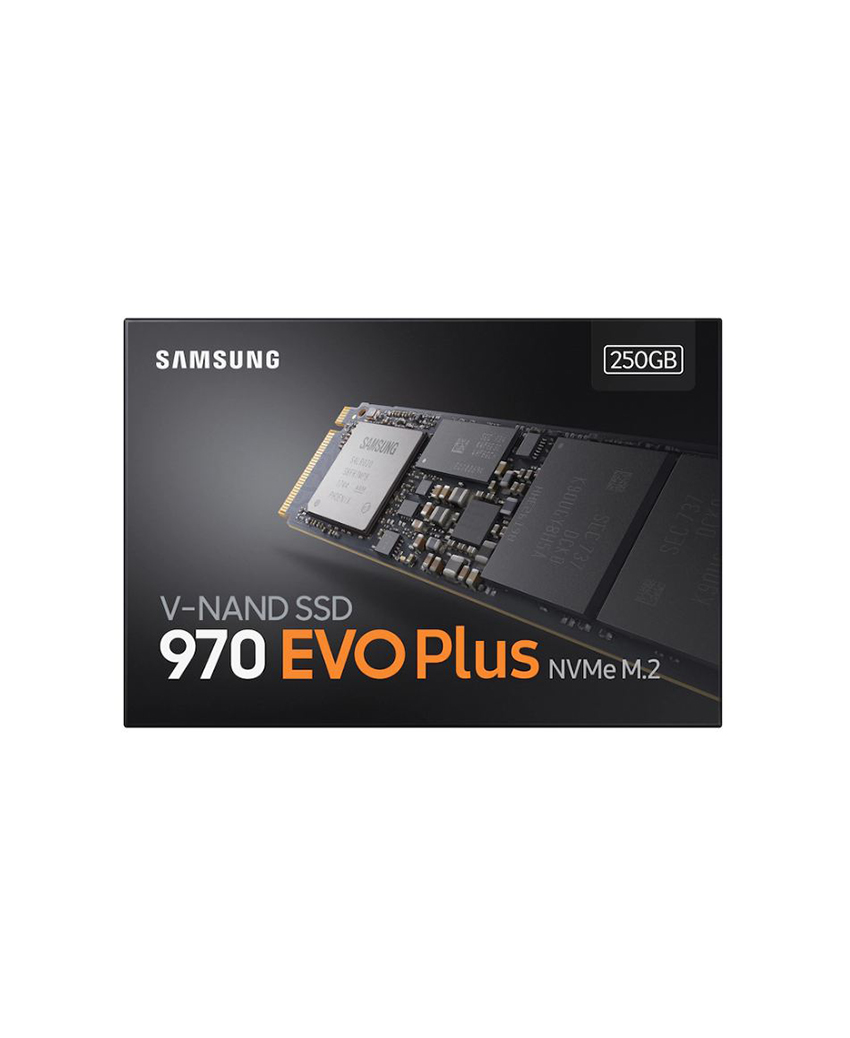

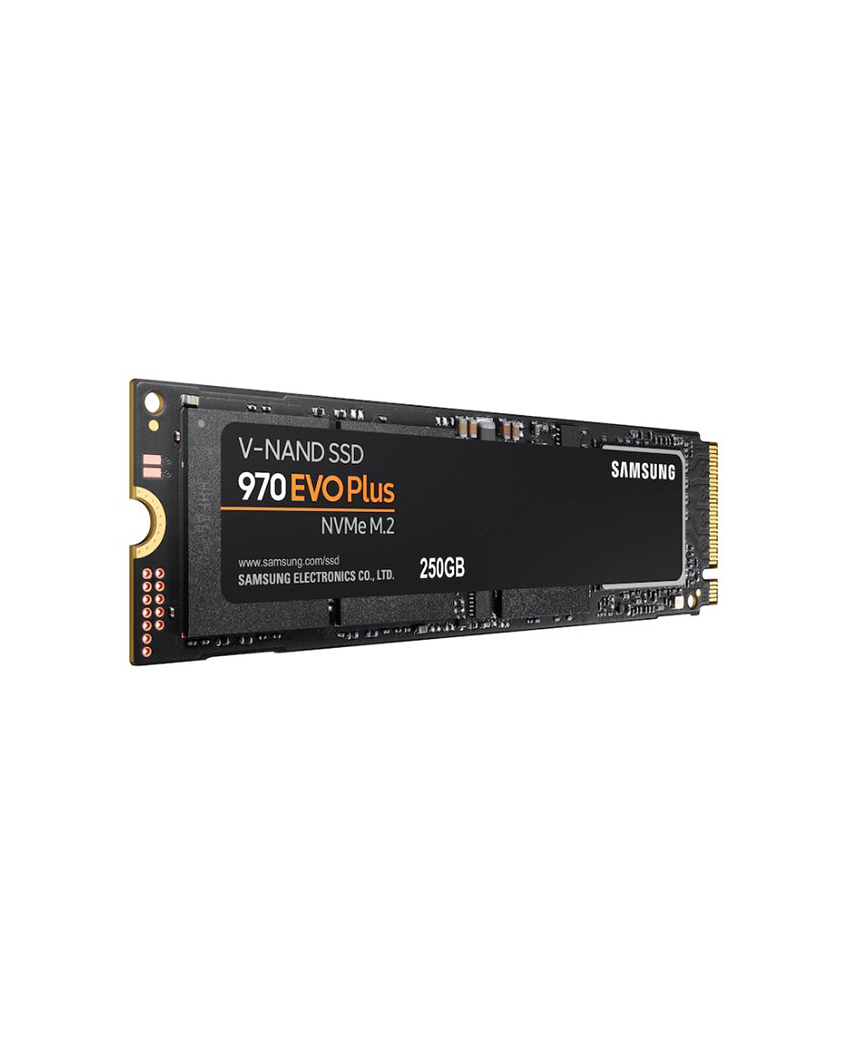

• MZ-V7S250 (250GB)

General Feature

• APPLICATION

  Client PCs

• FORM FACTOR²⁾

  M.2 (2280)

• INTERFACE

  PCIe^® Gen 3.0 x4, NVMe™ 1.3

• DIMENSION (WxHxD)

  Max. 80.15 x 22.15 x 2.38 (mm)

• WEIGHT

  Max 8.0 g

• STORAGE MEMORY

  Samsung V-NAND 3-bit MLC

• CONTROLLER

  Samsung In-house Controller

Special Feature

• TRIM SUPPORT

  Yes

• S.M.A.R.T SUPPORT

  Yes

• GC (GARBAGE COLLECTION)

  Auto Garbage Collection Algorithm

• ENCRYPTION SUPPORT

  AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)

• WWN SUPPORT

  Not Supported

• DEVICE SLEEP MODE SUPPORT

  Yes

Performance^3) 4)

• SEQUENTIAL READ

  Up to 3,500 MB/s

• SEQUENTIAL WRITE

  250GB: Up to 2,300 MB/s

• RANDOM READ (4KB, QD32)

  250GB: Up to 250,000 IOPS

• RANDOM WRITE (4KB, QD32)

  250GB: Up to 550,000 IOPS

• RANDOM READ (4KB, QD1)

  250GB: Up to 17,000 IOPS

• RANDOM WRITE (4KB, QD1)

  250GB: Up to 60,000 IOPS

Environment

• AVERAGE POWER CONSUMPTION
  (SYSTEM LEVEL)⁵⁾

  250GB: Average 5.0 W

• POWER CONSUMPTION (IDLE)³⁾

  Max. 30 mW

• POWER CONSUMPTION (DEVICE SLEEP)

  Max. 5 mW

• ALLOWABLE VOLTAGE

  3.3 V ± 5 % Allowable voltage

• RELIABILITY (MTBF)

  1.5 Million Hours Reliability

• OPERATING TEMPERATURE

  0 – 70 ℃

• SHOCK

  1,500 G & 0.5 ms (Half sine)

Accessories

• INSTALLATION KIT

  N/A

Software

• MANAGEMENT SW

  Magician Software for SSD management

Warranty⁶⁾

• MZ-V7S250 (250GB)

  5 Years or 150 TBW
