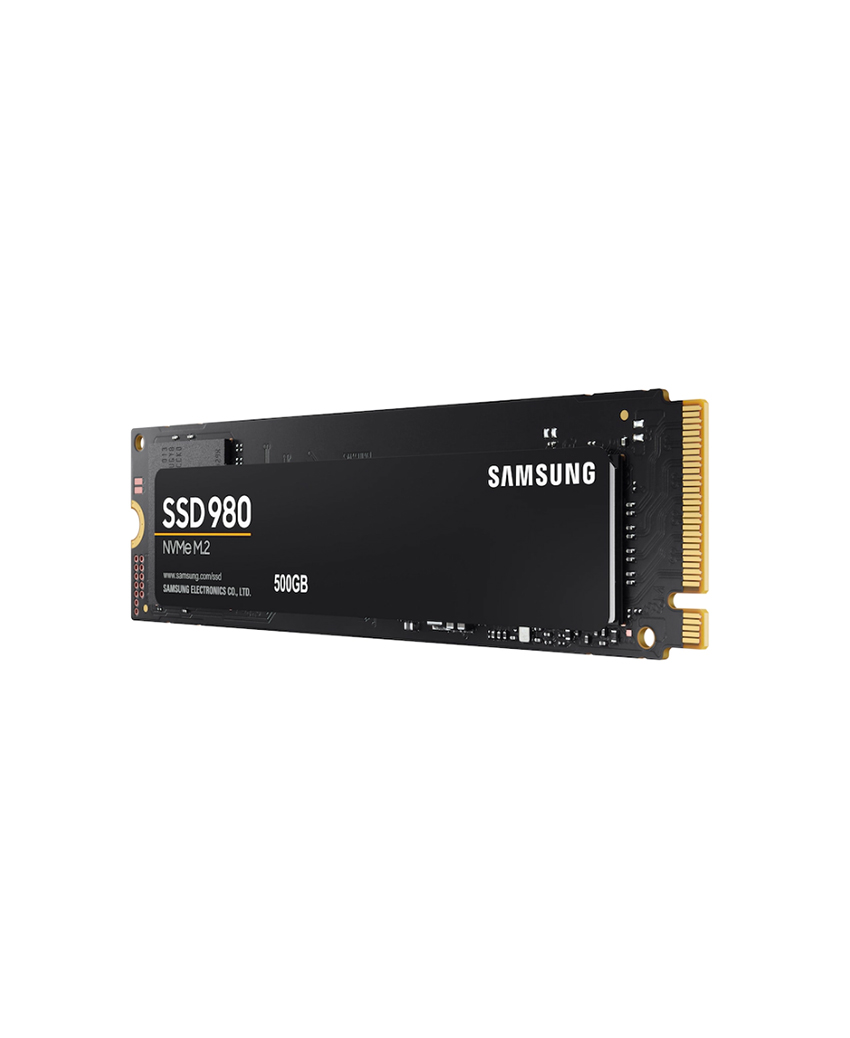

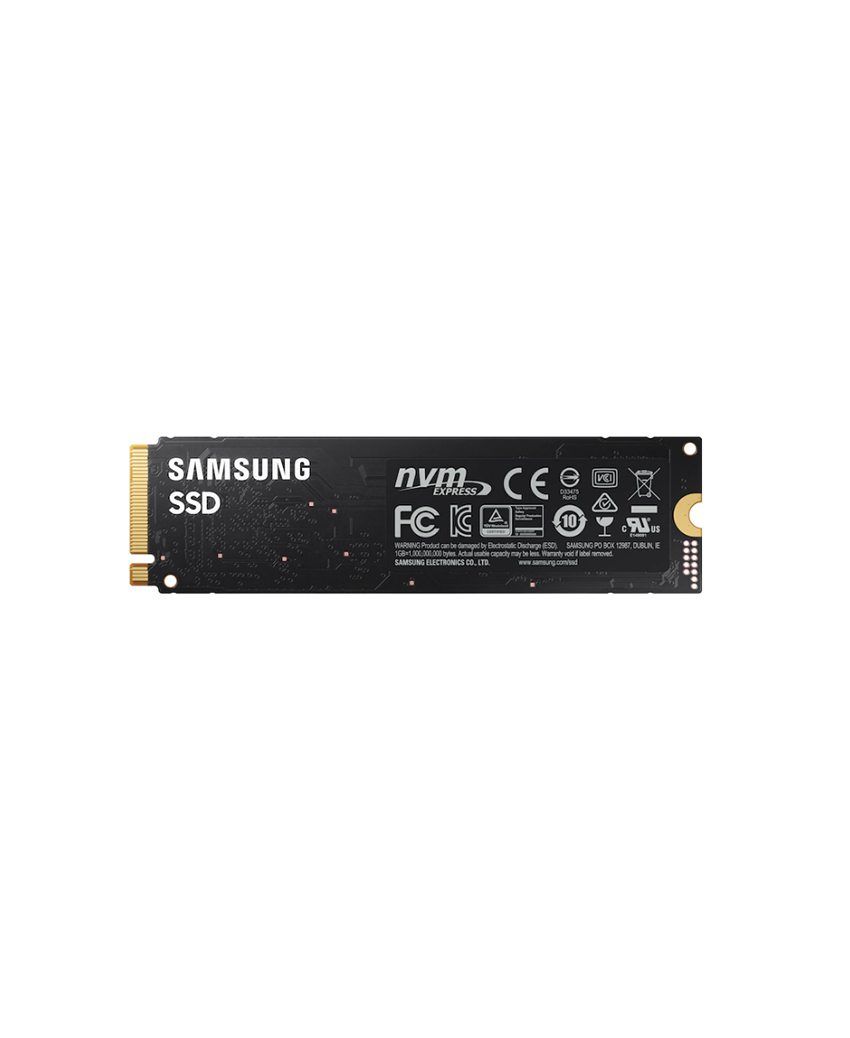

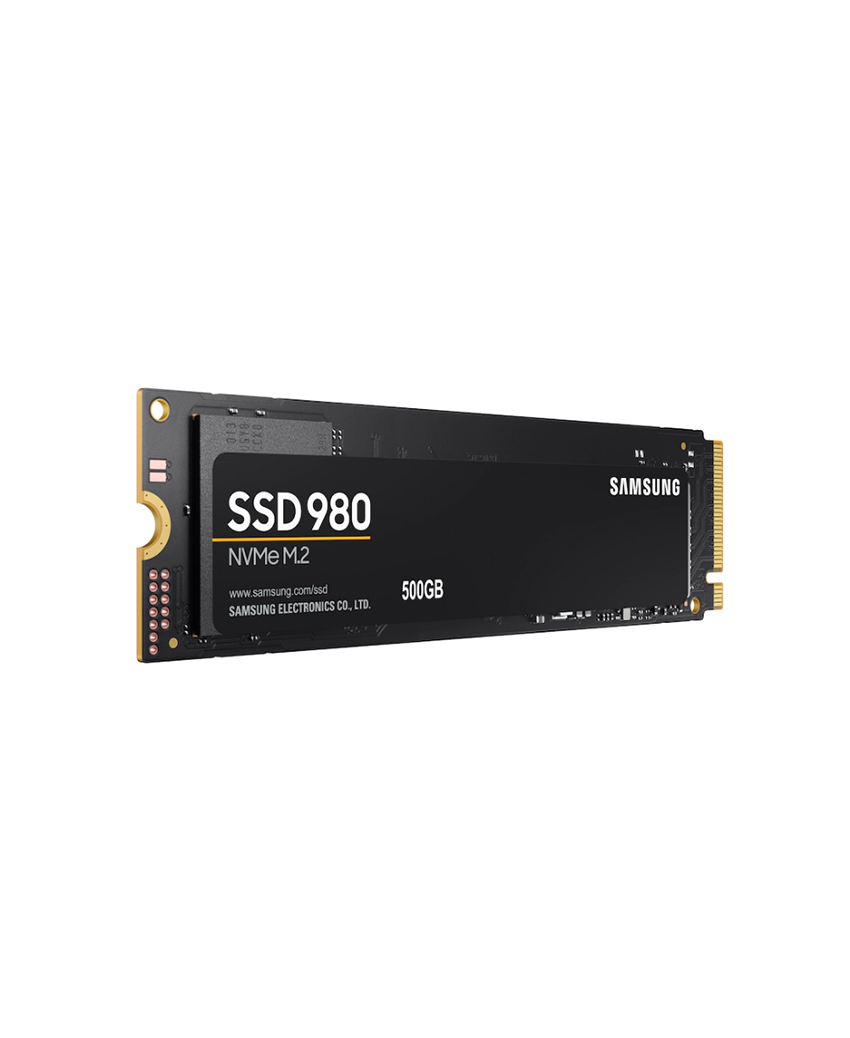

980 PCIe® 3.0 NVMe® SSD 500GB
-
General Feature
Product Type
980 PCIe® 3.0 NVMe® SSD 500GB
Family Line
980 PCIe® 3.0 NVMe® SSD
Capacity
500GB
Interface
PCIe® Gen 3.0 x4, NVMe® 1.4
Dimension (WxHxD)
80.15 x 2.38 x 22.15 (mm)
-
Performance
Speed
Read/write speeds up to: 3,100/2,600MB/s
Encryption
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
-
Type
Interface
PCIe® Gen 3.0 x4, NVMe 1.4
Usage Application
Client PCs
-
Storage
Capacity
500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Key Features
Sequential Read Speed
Up to 3,100 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 2,600 MB/s * Performance may vary based on system hardware & configuration
Cache Memory
HMB(Host Memory Buffer)
Trim Support
Supported
S.M.A.R.T. Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
Not supported
Device Sleep Mode Support
Yes
NVMe
PCIe® 3.0
-
General
Average Power Consumption (system level)
*Average: 4.3 W* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Environmental Specs
Shock
1,500 G & 0.5 ms (Half sine)
-
Form Factor
Product
M.2 2280
-
Warranty
Product
* Limited warranty up to 5 years or up to the TBW for each capacity ***For more information on the warranty, please visit www.samsung.com/support
